AM5726BABCXEA - Texas Instruments

Description: Sitara Processor: Dual Arm Cortex-A15 & Dual DSP

Download AM5726BABCXEA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM5726BABCXEA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

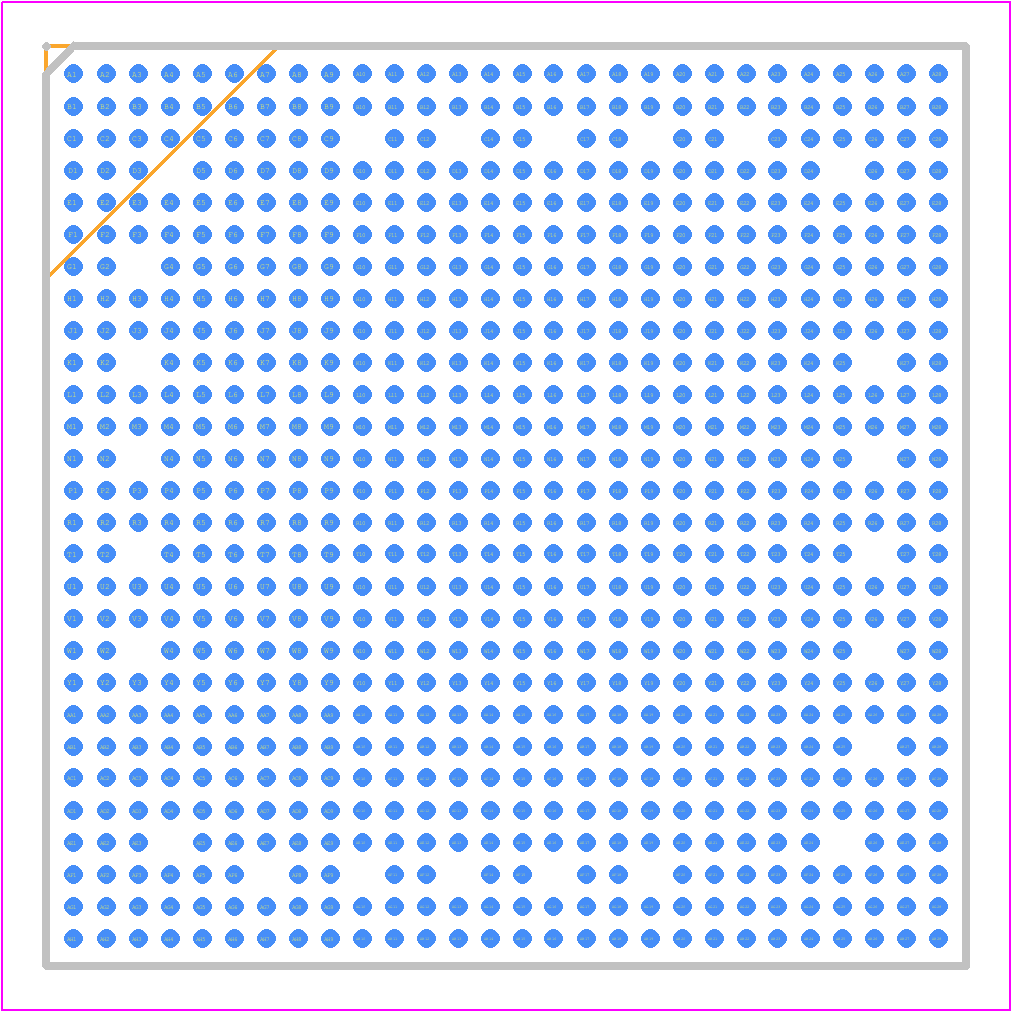

AM5726BABCXEA - Texas Instruments PCB footprint - BGA - BGA - ABC0760A
click to zoom
3D Models
AM5726BABCXEA - Texas Instruments - 3D model - BGA - ABC0760A
click to zoom

AM5726BABCXEA Details

  • Manufacturer Part Number:

    AM5726BABCXEA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2016-05-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B760

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    760

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA760,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.96 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.11 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    23 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM5726BABCXEA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AM5726BABCXEA is -40°C to 100°C.
  • The DDR memory interface on the AM5726BABCXEA can be configured using the DDR PHY register settings and the DDR controller register settings. Refer to the TRM (Technical Reference Manual) for detailed information.
  • The maximum frequency of the Cortex-A15 core on the AM5726BABCXEA is 1.5 GHz.
  • The PRU-ICSS on the AM5726BABCXEA can be used for industrial communication protocols such as EtherCAT, PROFINET, and EtherNet/IP. Refer to the PRU-ICSS TRM for detailed information on programming and using the PRU-ICSS.
  • The power consumption of the AM5726BABCXEA varies depending on the operating frequency, voltage, and usage. Refer to the datasheet for typical power consumption values.
