AM5748ABZXEA - Texas Instruments

Description: Microprocessors - MPU Sitara processor: dual arm Cortex-A15 & dual DSP, multimedia, ECC on DDR and secure boot 760-FCBGA -40 to 105

Download AM5748ABZXEA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM5748ABZXEA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

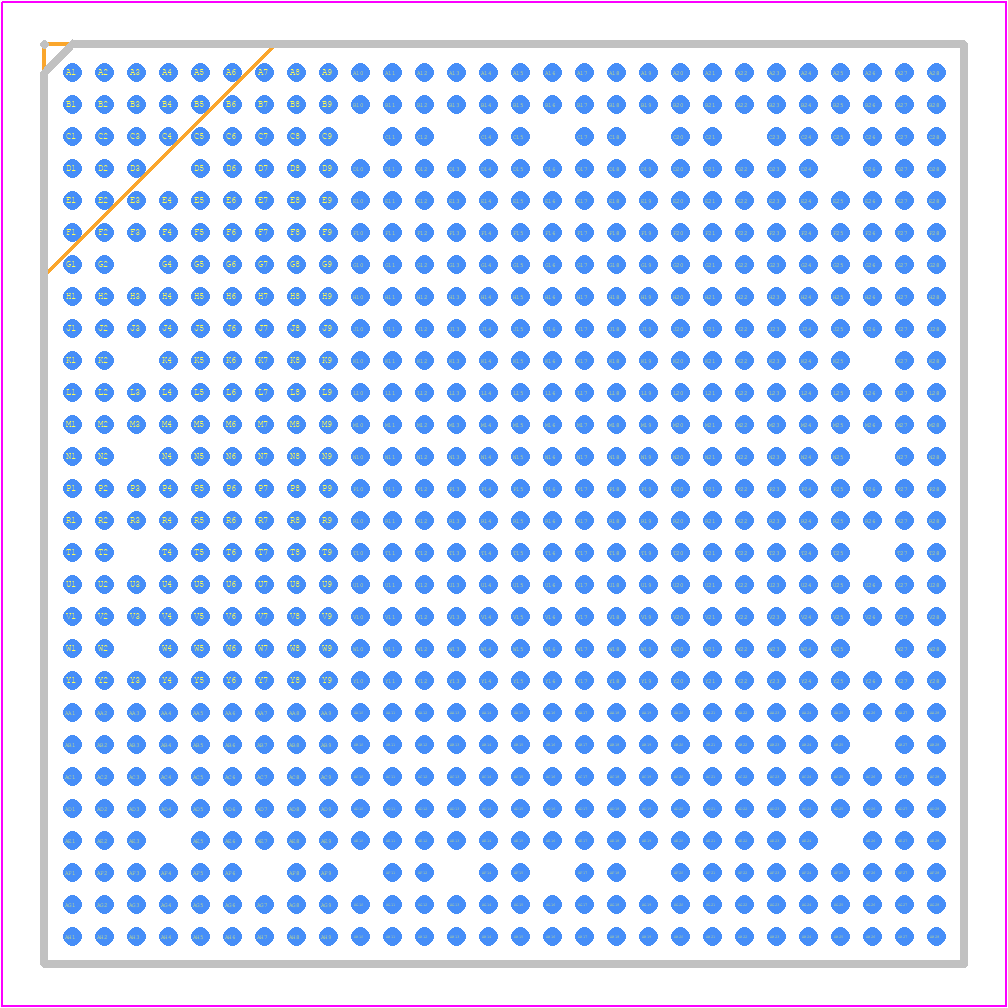

AM5748ABZXEA - Texas Instruments PCB footprint - BGA - BGA - ABZ0760A _2022
click to zoom
3D Models
AM5748ABZXEA - Texas Instruments - 3D model - BGA - ABZ0760A _2022
click to zoom

AM5748ABZXEA Details

  • Manufacturer Part Number:

    AM5748ABZXEA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2019-02-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B760

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    760

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA760,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.63 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.11 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    23 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM5748ABZXEA Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the core voltage (VDD_CORE) first, followed by the input/output voltage (VDD_IO). This ensures that the internal voltage regulators are properly enabled before the I/Os are powered up.
  • The clocking system on the AM5748ABZXEA can be configured using the Clock Domain Control (CDC) module. The CDC module allows you to configure the clock sources, clock frequencies, and clock dividers for the various clock domains on the device.
  • The maximum operating frequency of the AM5748ABZXEA is 1.5 GHz. However, the actual operating frequency may be limited by the specific use case, thermal design, and power consumption requirements.
  • Secure boot on the AM5748ABZXEA can be implemented using the Secure Boot and Image Authentication (SBIA) module. The SBIA module provides a secure boot mechanism that ensures the authenticity and integrity of the boot code and firmware.
  • The AM5748ABZXEA has a 32-bit external memory interface that can address up to 4 GB of external memory. However, the actual amount of external memory that can be connected depends on the specific use case and system design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM5748ABZXEA Overview

Use the download button to access the AM5748ABZXEA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM574, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
