Texas Instruments provides a recommended PCB layout in the AM5K2E04XABDA25 datasheet, which includes a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure proper thermal design, including a heat sink or thermal interface material, and consider using a thermal monitoring system to prevent overheating.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, the recommended operating voltage range is 3.3V to 5V to ensure reliable operation and prevent damage to the device.
The AM5K2E04XABDA25 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
The recommended clock frequency for the AM5K2E04XABDA25 is up to 200 MHz, but it can operate at frequencies up to 250 MHz with reduced performance. It's essential to follow the clock frequency guidelines in the datasheet to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM5K2E04XABDA25 Overview

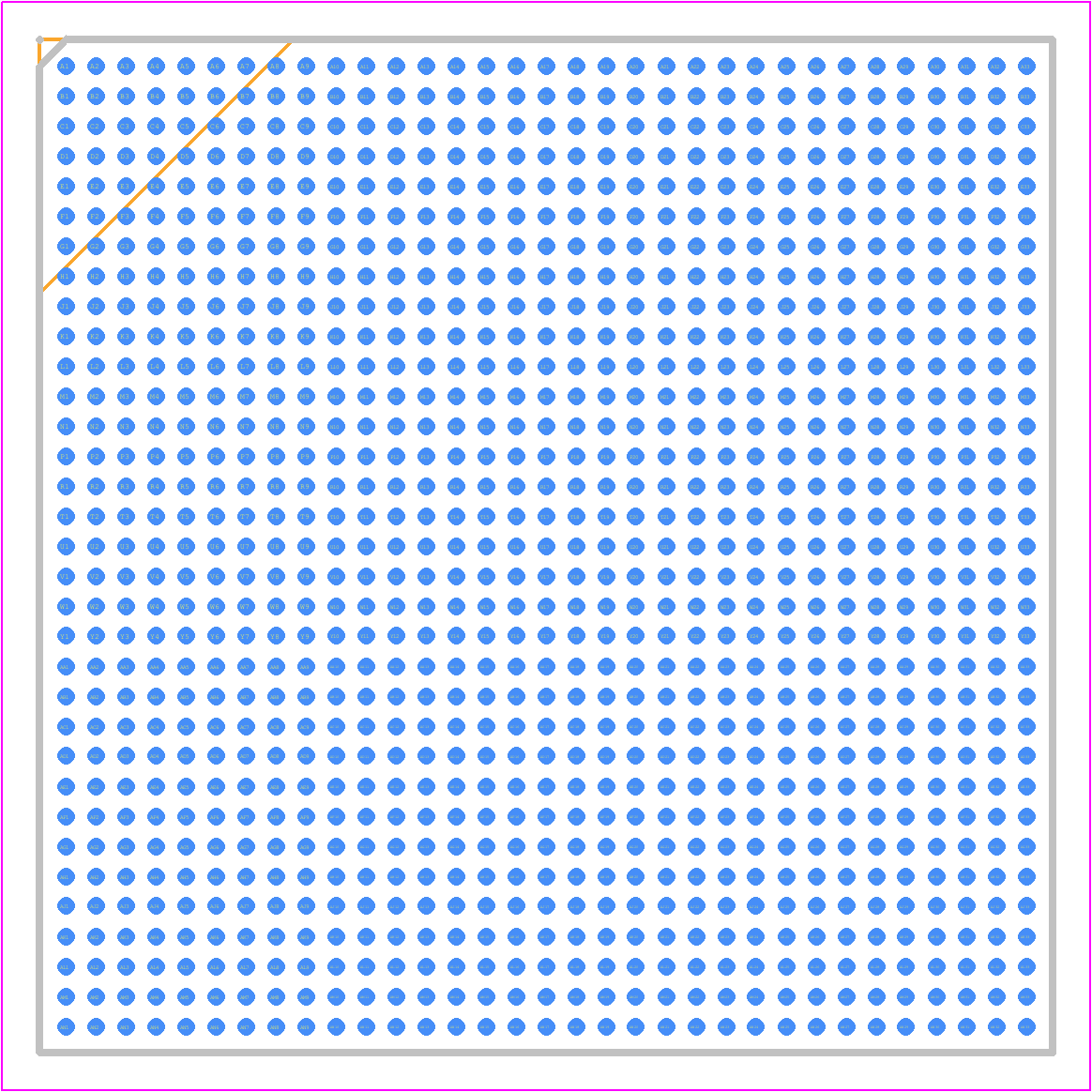

Use the download button to access the AM5K2E04XABDA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM5K2,
or try a keyword search, such as Microprocessors
