AM6232ATGGHAALWR - Texas Instruments

Description: Microprocessors - MPU Internet of Things (IoT) and gateway SoC with Arm Cortex-A53-based object and gesture recognition 425-FCCSP -40 to 105

Download AM6232ATGGHAALWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM6232ATGGHAALWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

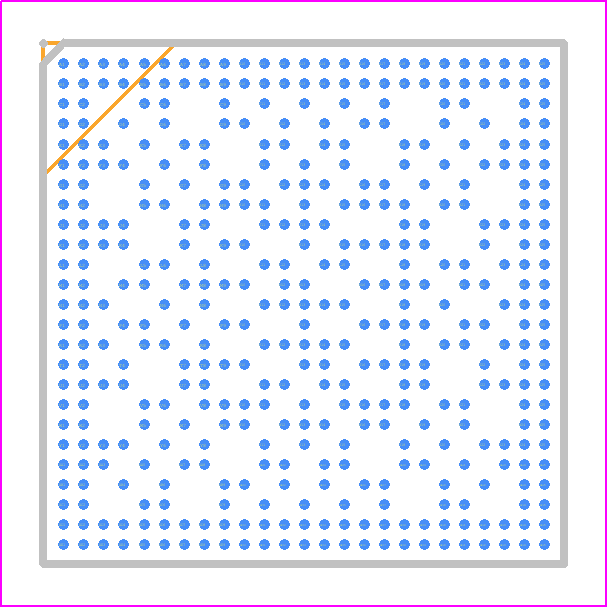

AM6232ATGGHAALWR - Texas Instruments PCB footprint - BGA - BGA - ALW0425A_2024
click to zoom
3D Models
AM6232ATGGHAALWR - Texas Instruments - 3D model - BGA - ALW0425A_2024
click to zoom

AM6232ATGGHAALWR Details

  • Manufacturer Part Number:

    AM6232ATGGHAALWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    also available with 0.85 nom supply voltage

  • JESD-30 Code:

    S-PBGA-B425

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    425

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA425,25X25,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Screening Level:

    ISO 26262

  • Seated Height-Max:

    0.89 mm

  • Supply Voltage-Max:

    0.79 V

  • Supply Voltage-Min:

    0.715 V

  • Supply Voltage-Nom:

    0.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    SOC

AM6232ATGGHAALWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AM6232ATGGHAALWR evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The AM6232ATGGHAALWR has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode using the I2C interface by writing to the Power Management Register (PMR). Refer to the datasheet for specific register settings.
  • The AM6232ATGGHAALWR is rated for operation from -40°C to 125°C, but it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • The AM6232ATGGHAALWR is designed to withstand moderate vibration levels, but it's crucial to ensure proper PCB mounting and mechanical design to minimize the effects of vibration on the device's performance. Consult with a mechanical engineer or Texas Instruments' support team for specific guidance.
  • To troubleshoot I2C communication issues, verify the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the device is properly addressed and that the I2C bus is not overloaded. Use a logic analyzer or oscilloscope to debug the I2C communication and consult the datasheet for specific I2C protocol details.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM6232ATGGHAALWR Overview

Use the download button to access the AM6232ATGGHAALWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM623, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
