Texas Instruments provides a recommended PCB layout in the AM6254ATCGHAALW datasheet, but it's essential to follow additional guidelines for optimal thermal performance. Ensure a solid ground plane, use thermal vias, and keep the PCB layer stack-up symmetrical to minimize thermal resistance.
The AM6254ATCGHAALW requires a high current supply, especially during startup. Ensure your power supply can provide the necessary current, and consider using a bulk capacitor to filter out noise and reduce voltage droop. Additionally, use a low-ESR capacitor to minimize power loss.
To configure the AM6254ATCGHAALW for low-power modes, use the Power Management Interface (PMI) to control the device's power states. Set the PMI registers to enable low-power modes, and consider using the device's built-in power gating feature to reduce power consumption.
To troubleshoot ADC issues, start by verifying the ADC clock frequency and ensuring it's within the recommended range. Check the ADC input voltage range and ensure it's within the specified limits. Also, review the ADC configuration registers to ensure they're set correctly, and consider using the device's built-in ADC diagnostic features.
When using the AM6254ATCGHAALW in high-temperature environments, ensure the device is operated within its recommended temperature range (-40°C to 125°C). Consider using thermal management techniques, such as heat sinks or thermal interfaces, to reduce the device's junction temperature. Also, review the device's thermal derating curves to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM6254ATCGHAALW Overview

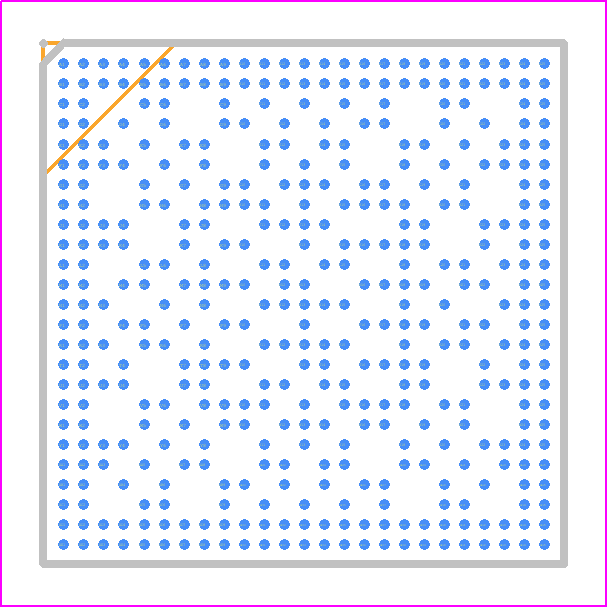

Use the download button to access the AM6254ATCGHAALW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM625,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
