AM6442BSDGHAALV - Texas Instruments

Description: ARM® Cortex®-A53, ARM® Cortex®-M5F, ARM® Cortex®-R5F Microprocessor IC Sitara™ 7 Core, 64-Bit 1GHz 441-FCBGA (17.2x17.2)

Download AM6442BSDGHAALV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM6442BSDGHAALV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

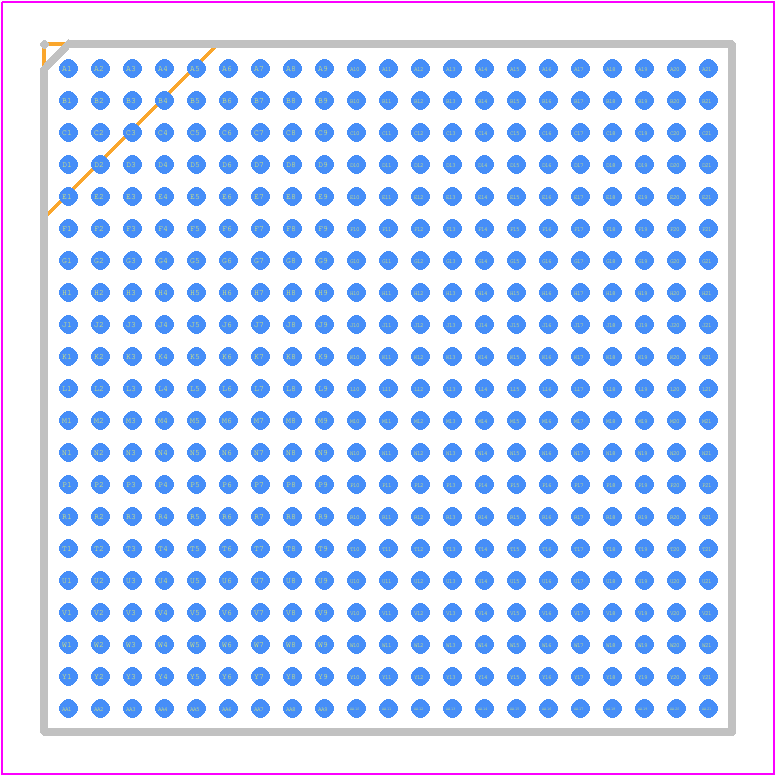

AM6442BSDGHAALV - Texas Instruments PCB footprint - BGA - BGA - 441-FCBGA (17.2x17.2)
click to zoom
3D Models
AM6442BSDGHAALV - Texas Instruments - 3D model - BGA - 441-FCBGA (17.2x17.2)
click to zoom

AM6442BSDGHAALV Details

  • Manufacturer Part Number:

    AM6442BSDGHAALV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 0.85V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B441

  • Length:

    17.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    441

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA441,21X21,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.652 mm

  • Speed:

    1000 MHz

  • Supply Voltage-Max:

    0.79 V

  • Supply Voltage-Min:

    0.715 V

  • Supply Voltage-Nom:

    0.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17.2 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM6442BSDGHAALV Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the input/output voltage (VDD_IO). This ensures proper device operation and prevents latch-up or damage.
  • The AM6442BSDGHAALV has a complex clocking system. For optimal performance, configure the clock sources, dividers, and multiplexers according to the application requirements. Refer to the device's technical reference manual and clocking guide for detailed information.
  • The maximum operating temperature range for the AM6442BSDGHAALV is -40°C to 100°C (industrial grade) or -40°C to 125°C (extended temperature grade). Ensure proper thermal management and heat dissipation to maintain reliable operation within this range.
  • The AM6442BSDGHAALV supports secure boot through the use of cryptographic keys and secure boot mechanisms. Implement secure boot by following the guidelines in the device's security documentation and using the provided software development kits (SDKs) and tools.
  • When designing a PCB with the AM6442BSDGHAALV, consider signal integrity, power integrity, and thermal management. Follow the recommended layout guidelines, use controlled impedance traces, and ensure proper decoupling and filtering to minimize noise and EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM6442BSDGHAALV Overview

Use the download button to access the AM6442BSDGHAALV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM644, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
