The recommended operating temperature range for the AM79Q021VC is 0°C to 70°C, with a storage temperature range of -40°C to 125°C.
To ensure reliable data transfer, use a proper termination scheme, maintain a stable clock signal, and ensure that the data bus is properly buffered and isolated from noise sources.
The AM79Q021VC supports a maximum clock frequency of 25 MHz, but it's recommended to operate at a frequency of 16.67 MHz or lower for optimal performance and power consumption.
Power sequencing should be done in the following order: VCC, VDD, and then clock signal. The reset pin should be asserted low for at least 10 clock cycles to ensure a proper reset.
Use 0.1 μF to 1 μF decoupling capacitors between VCC and GND, and VDD and GND, as close to the device as possible, to filter out noise and ensure stable power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM79Q021VC Overview

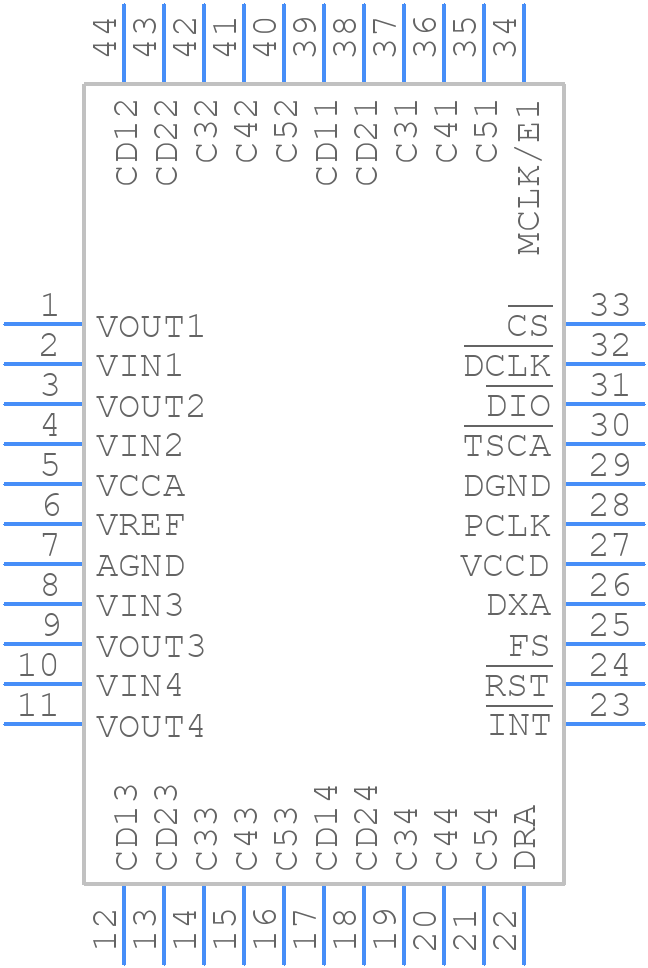

Use the download button to access the AM79Q021VC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM79Q,
or try a keyword search, such as Analog Transmission Interfaces
