Part Image

AMC0311DDWVR - Texas Instruments

Description: Isolation Amplifiers Precision 2V-input r einforced isolated

Download AMC0311DDWVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

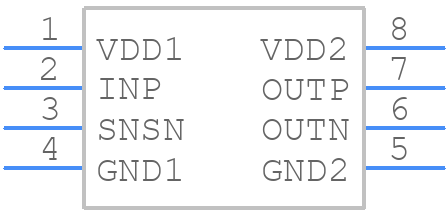

Symbol
AMC0311DDWVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC0311DDWVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A_-
click to zoom
3D Models
AMC0311DDWVR - Texas Instruments - 3D model - Small Outline Packages - DWV0008A_-
click to zoom

AMC0311DDWVR Details

  • Manufacturer Part Number:

    AMC0311DDWVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Isolation Voltage-Min:

    1500 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

AMC0311DDWVR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • To ensure accurate voltage regulation, use a high-precision voltage reference, such as the REF5050, and follow the recommended layout and decoupling guidelines in the datasheet. Additionally, minimize noise and ripple on the input voltage.
  • The AMC0311DDWVR can deliver up to 1.5 A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current limits and thermal derating.
  • Use a TVS (Transient Voltage Suppressor) diode, such as the SMAJ58A, in parallel with the input capacitor to protect the AMC0311DDWVR from input voltage transients and surges. Ensure the TVS diode is rated for the maximum expected input voltage.
  • Texas Instruments recommends a 10 μF to 22 μF X7R or X5R ceramic capacitor with a voltage rating of at least 2x the maximum input voltage. The capacitor should be placed as close as possible to the AMC0311DDWVR input pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC0311DDWVR Overview

Use the download button to access the AMC0311DDWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC03, or try a keyword search, such as Isolation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
