A good PCB layout for the AMC1100DUB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and that the input signals are within the recommended voltage range.
When selecting external components for the AMC1100DUB, consider the device's operating frequency, input impedance, and output impedance. Choose resistors with low tolerance and temperature coefficients, and capacitors with low equivalent series resistance (ESR) and high reliability. Additionally, ensure the components are rated for the device's operating voltage and temperature range.
To troubleshoot issues with the AMC1100DUB, start by verifying the device's power supply and clock signals. Check for proper PCB layout and component selection. Use an oscilloscope to verify the input signals and device outputs. Consult the datasheet and application notes for troubleshooting guides and FAQs. If issues persist, contact Texas Instruments' support team for further assistance.
To ensure reliable operation in high-temperature environments, follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. The AMC1100DUB has a maximum junction temperature of 150°C, so ensure the device is operated within its specified temperature range. Consult the datasheet and application notes for thermal management guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1100DUB Overview

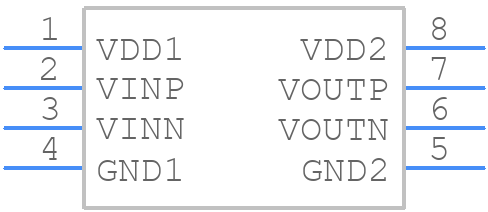

Use the download button to access the AMC1100DUB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC11,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
