AMC1100DWVR - Texas Instruments

Description: ±250 mV-Input, Low-Cost Basic Isolated Amplifier for Current Sensing

Download AMC1100DWVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

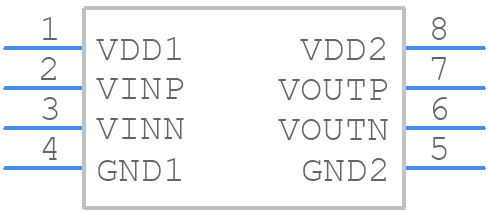

Symbol
AMC1100DWVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1100DWVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
AMC1100DWVR - Texas Instruments - 3D model - Small Outline Packages - DWV0008A
click to zoom

AMC1100DWVR Details

  • Manufacturer Part Number:

    AMC1100DWVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Bandwidth (3dB)-Nom:

    0.1 MHz

  • Common Mode Voltage-Max:

    5.5 V

  • Input Offset Voltage-Max:

    1500 µV

  • Isolation Voltage-Min:

    800 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Non-linearity-Max:

    0.075%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    0.1

  • Width:

    5.85 mm

AMC1100DWVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMC1100DWVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
  • The AMC1100DWVR requires a calibration process to ensure accurate measurements. This involves applying a known input voltage and adjusting the internal offset and gain registers to achieve the desired output. The calibration process can be done using the device's built-in calibration registers or through external calibration using a microcontroller or other external device.
  • The AMC1100DWVR can handle input voltages up to 450 Vrms without damage. However, it's recommended to operate the device within the specified input voltage range of 0 to 425 Vrms to ensure accurate measurements and prevent damage to the device.
  • The AMC1100DWVR has a 16-bit parallel output that can be interfaced with a microcontroller or other digital device using a standard parallel interface. The device also has a SPI-compatible interface for programming the internal registers and reading the output data.
  • The typical power consumption of the AMC1100DWVR is around 150 mW. To reduce power consumption, you can use the device's power-down mode, which reduces power consumption to around 10 mW. Additionally, using a lower supply voltage and optimizing the device's clock frequency can also help reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1100DWVR Overview

Use the download button to access the AMC1100DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC11, or try a keyword search, such as Isolation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
