A good PCB layout for the AMC1200BDWVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the recommended range.
The recommended input signal range for the AMC1200BDWVR is 0 to 5V, with a maximum input voltage of 5.5V. Operating the device outside of this range can result in reduced accuracy, increased noise, and potentially even damage to the device.
The AMC1200BDWVR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) mechanisms. The OVP circuitry limits the input voltage to 5.5V, while the UVP circuitry ensures that the device remains in a low-power state when the input voltage falls below 2.7V. Additionally, the device has internal ESD protection diodes to protect against electrostatic discharge.
The typical power consumption of the AMC1200BDWVR is around 1.5mA at 5V supply voltage. To optimize power consumption, consider using a lower supply voltage, reducing the clock frequency, and using the device's power-down mode when not in use. Additionally, using a low-dropout regulator (LDO) can help to reduce power consumption by minimizing the voltage drop between the supply voltage and the device's internal voltage regulator.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1200BDWVR Overview

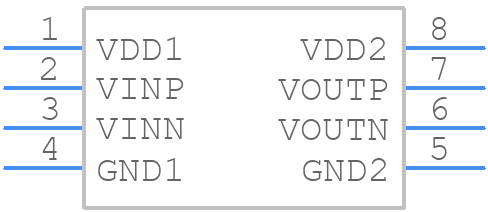

Use the download button to access the AMC1200BDWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12,
or try a keyword search, such as Isolation Amplifiers
