A good PCB layout for the AMC1203BDUB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and that the input signals are within the recommended range.
When selecting external components for the AMC1203BDUB, consider the device's operating frequency, input impedance, and output impedance. Choose resistors with low tolerance and temperature coefficients, and capacitors with low equivalent series resistance (ESR) and high reliability. Additionally, ensure the components are rated for the device's operating voltage and temperature range.
To troubleshoot issues with the AMC1203BDUB, start by verifying the device's power supply and clock signals. Check for proper PCB layout and component selection. Use an oscilloscope to verify the input signals and device outputs. Consult the datasheet and application notes for troubleshooting guides and FAQs. If issues persist, contact Texas Instruments' support team for further assistance.
To ensure the AMC1203BDUB operates within its specified temperature range, consider the device's thermal characteristics, such as its junction-to-ambient thermal resistance. Use thermal vias and thermal pads on the PCB to improve heat dissipation. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if necessary. Monitor the device's temperature using an on-board temperature sensor or an external thermometer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1203BDUB Overview

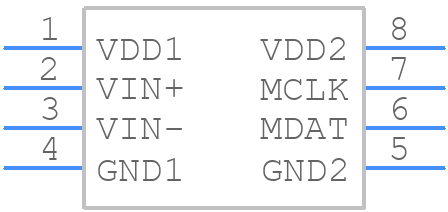

Use the download button to access the AMC1203BDUB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
