AMC1203BDUBR - Texas Instruments

Description: Analog to Digital Converters - ADC 1B 10MHz 2nd-Order Iso Delta-Sigma Mod

Download AMC1203BDUBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

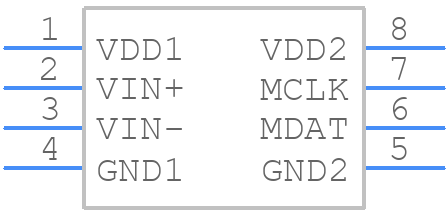

AMC1203BDUBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1203BDUBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DUB0008A
click to zoom
3D Models
AMC1203BDUBR - Texas Instruments - 3D model - Small Outline Packages - DUB0008A
click to zoom

AMC1203BDUBR Details

  • Manufacturer Part Number:

    AMC1203BDUBR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    9.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    GWDIP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.85 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.57 mm

AMC1203BDUBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1203BDUBR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate measurements.
  • The AMC1203BDUBR does not require calibration, as it is a ratiometric device that measures the ratio of the input voltage to the reference voltage. However, it is recommended to follow the application notes and guidelines provided by Texas Instruments to ensure accurate measurements.
  • The AMC1203BDUBR can handle a maximum common-mode voltage of ±250 mV, which is specified in the datasheet. Exceeding this limit may affect the accuracy and reliability of the device.
  • The AMC1203BDUBR is rated for operation up to 125°C, but it is recommended to derate the device's performance and accuracy at higher temperatures. Consult the datasheet and application notes for more information on temperature-related performance.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the device is properly grounded. Consult the datasheet and application notes for more information on EMC considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1203BDUBR Overview

Use the download button to access the AMC1203BDUBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
