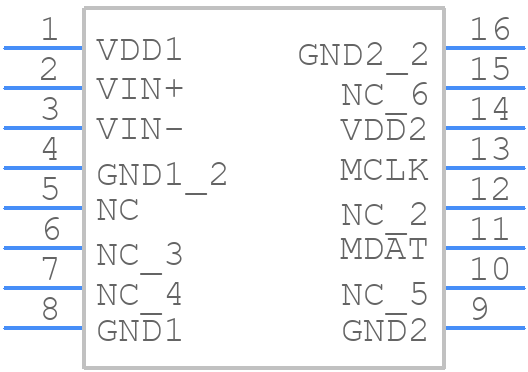

AMC1203BDWR - Texas Instruments

AMC1203BDWR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AMC1203BDWR to minimize noise and ensure optimal performance?
  Texas Instruments provides a recommended PCB layout in the AMC1203BDWR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
• How do I handle the high-frequency noise generated by the AMC1203BDWR's high-speed digital outputs?
  To handle high-frequency noise, use proper PCB layout techniques such as separating analog and digital grounds, using decoupling capacitors, and adding series resistors to the digital outputs to reduce ringing and overshoot.
• What is the maximum cable length for the AMC1203BDWR's differential output signals?
  The maximum cable length for the AMC1203BDWR's differential output signals depends on the specific application and the signal frequency. As a general guideline, Texas Instruments recommends keeping the cable length below 10 inches (25 cm) to ensure signal integrity.
• How do I calibrate the AMC1203BDWR to achieve optimal accuracy and linearity?
  Calibration of the AMC1203BDWR involves adjusting the internal gain and offset registers to compensate for device variations and external component tolerances. Texas Instruments provides a calibration procedure in the AMC1203BDWR datasheet and application notes.
• What is the power-on reset (POR) timing for the AMC1203BDWR, and how does it affect system startup?
  The AMC1203BDWR has a POR timing of approximately 10 ms, during which the device resets its internal registers and initializes its analog-to-digital converters. System designers should ensure that the power supply is stable and the clock signal is valid before the POR timing expires to ensure proper system startup.
