AMC1203BPSA - Texas Instruments

Description: 1-Bit, 10MHz, 2nd-Order, Isolated Delta-Sigma Modulator

Download AMC1203BPSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

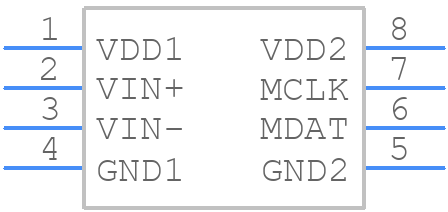

AMC1203BPSA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1203BPSA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PSA (R-PDSO-G8)
click to zoom
3D Models
AMC1203BPSA - Texas Instruments - 3D model - Small Outline Packages - PSA (R-PDSO-G8)
click to zoom

AMC1203BPSA Details

  • Manufacturer Part Number:

    AMC1203BPSA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    9.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.85 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.57 mm

AMC1203BPSA Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1203BPSA evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • To handle high-frequency noise generated by the internal oscillator, it is recommended to use a low-pass filter or a ferrite bead in series with the VCC pin, and to ensure that the PCB layout is designed to minimize noise coupling.
  • The maximum allowed capacitive load on the AMC1203BPSA's output pins is 100 pF. Exceeding this limit may affect the device's stability and performance.
  • To ensure accurate temperature measurement, it is recommended to use a thermocouple with a high-quality thermal interface, to calibrate the device using a known temperature reference, and to consider the effects of thermal gradients and noise on the measurement.
  • The recommended power-up sequence for the AMC1203BPSA is to apply VCC first, followed by the analog input voltage, and then the digital input signals. This sequence helps to ensure that the device powers up correctly and minimizes the risk of latch-up or other damage.
