AMC1203DUB - Texas Instruments

Description: 1-Bit, 10MHz, 2nd-Order, Isolated Delta-Sigma Modulator

Download AMC1203DUB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

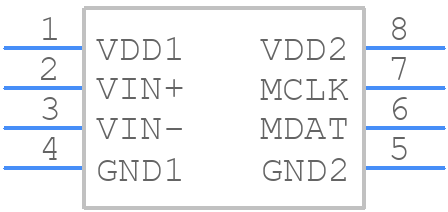

Symbol
AMC1203DUB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1203DUB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DUB0008A
click to zoom
3D Models
AMC1203DUB - Texas Instruments - 3D model - Small Outline Packages - DUB0008A
click to zoom

AMC1203DUB Details

  • Manufacturer Part Number:

    AMC1203DUB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    9.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    GWDIP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.85 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.57 mm

AMC1203DUB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1203DUB evaluation module user's guide (SLAU445). It's essential to follow this layout to ensure proper operation and minimize noise.
  • To minimize high-frequency noise, use a low-pass filter (e.g., RC filter) on the output pins, and ensure proper PCB layout and grounding. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum allowed voltage on the AMC1203DUB's input pins is ±50 mV. Exceeding this voltage can damage the device. Ensure that the input signal is within the specified range to prevent damage.
  • The AMC1203DUB can be configured for differential or single-ended input mode by connecting the appropriate pins. For differential mode, connect the INP and INN pins to the differential signal. For single-ended mode, connect the INP pin to the signal and the INN pin to GND. Refer to the datasheet for specific pin connections.
  • The typical power consumption of the AMC1203DUB is around 12.5 mW (5 V, 2.5 mA) when operating at 500 kSPS. However, this value can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1203DUB Overview

Use the download button to access the AMC1203DUB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
