Texas Instruments provides a recommended PCB layout in the AMC1203DW evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and shielding to minimize noise and ensure accurate measurements.
Calibration of the AMC1203DW involves adjusting the internal gain and offset registers to compensate for device variations and external component tolerances. Texas Instruments provides a calibration procedure in the AMC1203DW datasheet and application notes, which involves measuring the device's output with a known input signal and adjusting the registers accordingly.
The AMC1203DW can handle a maximum common-mode voltage of ±250 mV, which is specified in the datasheet. Exceeding this limit can cause the device to malfunction or even damage it.
No, the AMC1203DW is designed to operate with a 3.3V power supply, and using a 5V power supply can cause the device to malfunction or even damage it. The device's absolute maximum rating for the supply voltage is 3.6V.
The AMC1203DW is specified to operate within a temperature range of -40°C to 125°C. To ensure that the device operates within this range, the user should ensure that the device is properly heatsinked, and the ambient temperature is within the specified range. Additionally, the user should also consider the temperature coefficient of the device's parameters, such as gain and offset, when designing the system.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
AMC1203DW Overview

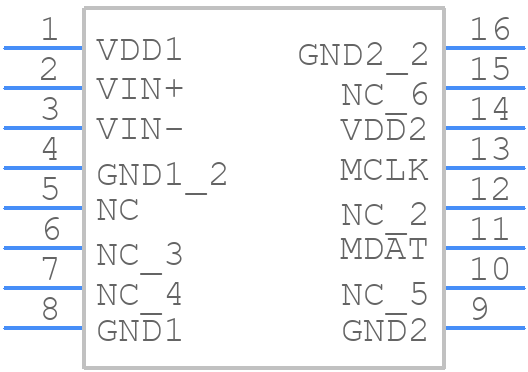

Use the download button to access the AMC1203DW schematic symbol, PCB footprint, and 3D model.
