AMC1203PSA - Texas Instruments

Description: 1-Bit, 10MHz, 2nd-Order, Isolated Delta-Sigma Modulator

Download AMC1203PSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

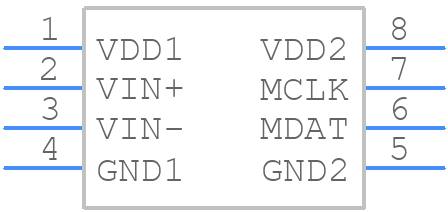

Symbol
AMC1203PSA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1203PSA - Texas Instruments PCB footprint - Other - Other - SOIC127P790X200-8N
click to zoom

AMC1203PSA Details

  • Manufacturer Part Number:

    AMC1203PSA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    9.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.85 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.57 mm

AMC1203PSA Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMC1203PSA involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and that the input signals are within the recommended range.
  • The recommended input signal range for the AMC1203PSA is ±250mV. Operating outside of this range can result in reduced accuracy and linearity. It's essential to ensure the input signals are within this range to achieve optimal performance and accuracy.
  • The AMC1203PSA can handle common-mode voltages up to ±200mV. However, excessive common-mode voltage can affect the device's accuracy and linearity. To mitigate this, it's essential to ensure the input signals are properly filtered and that the system is designed to minimize common-mode voltage.
  • The AMC1203PSA is sensitive to temperature, and its performance can be affected by temperature changes. It's essential to ensure the device is operated within its specified temperature range (-40°C to 125°C) and that proper thermal management is implemented in the system design to minimize temperature-related errors.
