AMC1210IRHATG4 - Texas Instruments

Description: Data Acquisition ADCs/DACs - Specialised 4Ch Dig Filter

Download AMC1210IRHATG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

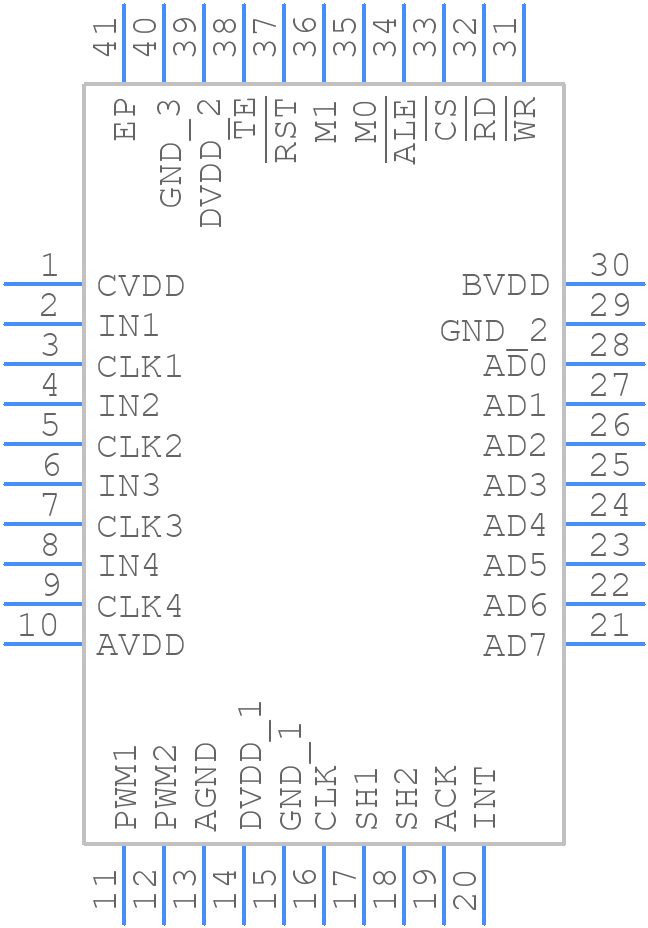

AMC1210IRHATG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1210IRHATG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040D
click to zoom
3D Models
AMC1210IRHATG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040D
click to zoom

AMC1210IRHATG4 Details

  • Manufacturer Part Number:

    AMC1210IRHATG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    GREEN, PLASTIC, QFN-40

  • Pin Count:

    40

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AMC1210IRHATG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1210IRHATG4 evaluation module user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • To minimize high-frequency noise, use a low-pass filter or a ferrite bead in series with the output pins, and ensure good PCB layout practices such as separating analog and digital grounds, using ground planes, and minimizing trace lengths.
  • The AMC1210IRHATG4 can handle input voltages up to 650V, but it's recommended to limit the input voltage to 600V or less to ensure reliable operation and to prevent damage to the device.
  • Calibration involves adjusting the internal offset and gain of the device. Texas Instruments provides a calibration procedure in the AMC1210IRHATG4 datasheet, which involves applying a known input voltage and adjusting the offset and gain registers to achieve optimal performance.
  • The typical power consumption of the AMC1210IRHATG4 is around 12mA, but this can vary depending on the input voltage, output load, and operating frequency. Refer to the datasheet for more information on power consumption and thermal management.
