A good PCB layout for the AMC1211AQDWVQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the recommended range.
Operating the AMC1211AQDWVQ1 outside of its recommended temperature range can affect its accuracy and reliability. At higher temperatures, the device's offset voltage and gain may drift, leading to reduced accuracy. At lower temperatures, the device's response time may increase, affecting its ability to accurately measure high-frequency signals.
To minimize the effects of EMI, use shielding, filtering, and grounding techniques. Ensure that the device is placed in a shielded enclosure, and use filters to remove high-frequency noise from the input signals. Additionally, use a low-pass filter to remove high-frequency noise from the power supply lines.
Using a different voltage supply than the recommended 5V can affect the device's performance and accuracy. The AMC1211AQDWVQ1 is designed to operate from a 5V supply, and using a different voltage may cause the device to malfunction or operate outside of its specified parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1211AQDWVQ1 Overview

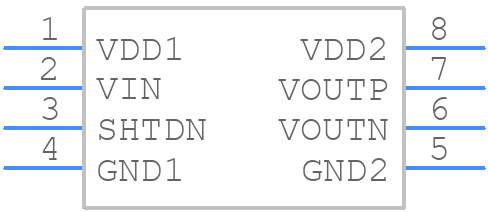

Use the download button to access the AMC1211AQDWVQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
