A good PCB layout for the AMC1211AQDWVRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the recommended range.
When selecting an external clock source for the AMC1211AQDWVRQ1, consider the clock frequency, jitter, and phase noise. The clock frequency should be within the recommended range (typically 10-50 MHz), and the jitter and phase noise should be minimized to ensure accurate conversions. Additionally, ensure that the clock source is stable and reliable to prevent errors in the conversion process.
To handle overvoltage and undervoltage conditions, use external voltage protection devices such as TVS diodes or voltage regulators to limit the input voltage to within the recommended range. Additionally, consider using a voltage monitor or supervisor IC to detect and respond to voltage faults.
To ensure proper thermal management, ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal pad should be connected to a solid ground plane to improve heat dissipation. Additionally, operate the device within its specified temperature range to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1211AQDWVRQ1 Overview

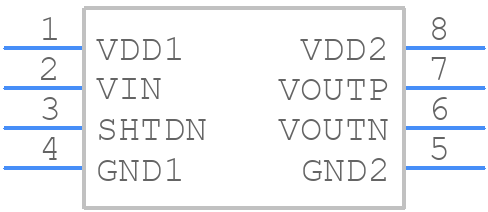

Use the download button to access the AMC1211AQDWVRQ1 schematic symbol, PCB footprint, and 3D model.
