AMC1301DWVR - Texas Instruments

Description: TEXAS INSTRUMENTS - AMC1301DWVR - ISOLATION AMP, 210KHZ, 50UV, SOIC-8

Download AMC1301DWVR Model

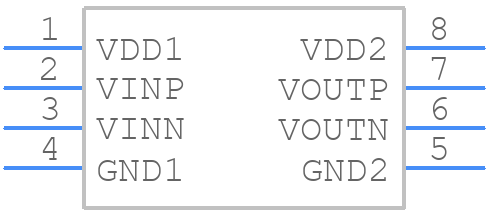

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMC1301DWVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A-1
click to zoom
3D Models
AMC1301DWVR - Texas Instruments  - 3D model - Small Outline Packages - DWV0008A-1
click to zoom

AMC1301DWVR Details

  • Manufacturer Part Number:

    AMC1301DWVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-05-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Bandwidth (3dB)-Nom:

    210 MHz

  • Common Mode Voltage-Max:

    1.49 V

  • Input Offset Voltage-Max:

    200 µV

  • Isolation Voltage-Min:

    1000 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.03%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    8.3 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    0.21

  • Width:

    5.85 mm

AMC1301DWVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMC1301DWVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and that the input signals are within the recommended voltage range.
  • When selecting external components for the AMC1301DWVR, consider the device's operating frequency, input impedance, and output impedance. Choose resistors with low tolerance and temperature coefficients, and capacitors with low equivalent series resistance (ESR) and high reliability. Additionally, ensure the components are rated for the device's operating voltage and temperature range.
  • To troubleshoot issues with the AMC1301DWVR, start by verifying the device's power supply and clock signals. Check for proper connections and signal integrity. Use an oscilloscope to verify the input signals and device outputs. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
  • The AMC1301DWVR has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or heat sinks if operating in high-temperature environments. Follow the recommended thermal design guidelines in the datasheet and application notes.
