AMC1304L25DWR - Texas Instruments

Description: 1-Channel Single ADC Delta-Sigma 20Msps 16-bit Serial LVDS 16-Pin SOIC T/R

Download AMC1304L25DWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

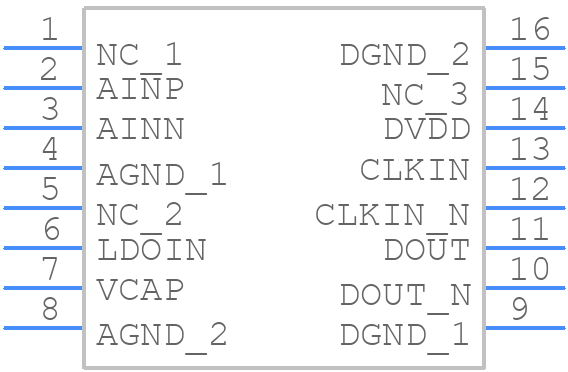

AMC1304L25DWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1304L25DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
AMC1304L25DWR - Texas Instruments - 3D model - Small Outline Packages - DW0016B
click to zoom

AMC1304L25DWR Details

  • Manufacturer Part Number:

    AMC1304L25DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 15 V FOR LDO

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AMC1304L25DWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1304L25DWR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AMC1304L25DWR can be configured for differential or single-ended input modes by setting the appropriate values on the MODE pins (MODE0 and MODE1). Refer to the datasheet for the specific pin configurations for each mode.
  • The maximum input voltage range for the AMC1304L25DWR is ±650 mV. Exceeding this range can lead to reduced accuracy, increased noise, and potentially damage the device. It's essential to ensure that the input voltage stays within the recommended range to maintain optimal performance.
  • The gain error and offset error for the AMC1304L25DWR can be calculated using the formulas provided in the datasheet. Typical values for these errors are ±0.1% for gain error and ±2 mV for offset error, but these values can vary depending on the specific device and operating conditions.
  • The recommended power-up sequence for the AMC1304L25DWR is to power up the analog supply (AVDD) before the digital supply (DVDD). This sequence helps to prevent latch-up and ensures proper device operation. Failure to follow this sequence can result in device damage or malfunction.
