A good PCB layout for the AMC1305M25DW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision resistor network to improve accuracy.
Operating the AMC1305M25DW outside the recommended temperature range of -40°C to 125°C may affect its performance, accuracy, and reliability. The device may experience reduced accuracy, increased noise, and decreased lifespan. It is essential to ensure the device operates within the recommended temperature range to maintain optimal performance.
The AMC1305M25DW's POR and BOR features ensure the device resets properly during power-up and brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended range, and that the device is properly decoupled using capacitors and resistors as recommended in the datasheet.
To minimize EMI and RFI when using the AMC1305M25DW, use proper shielding, grounding, and decoupling techniques. Keep the device away from high-frequency sources, use twisted-pair wiring, and consider using EMI filters or shielding on the PCB. Additionally, follow proper PCB layout and routing guidelines to reduce radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1305M25DW Overview

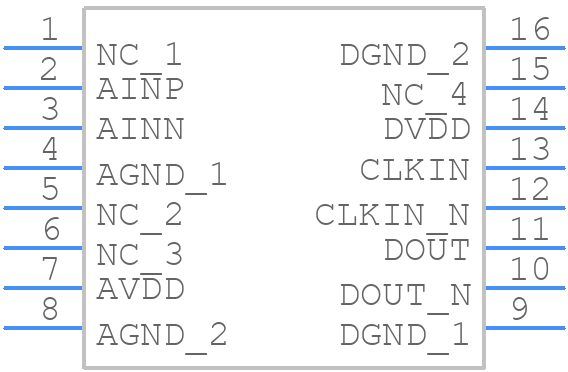

Use the download button to access the AMC1305M25DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
