A good PCB layout for the AMC1311QDWVQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision resistor network to improve accuracy.
When selecting an external clock source for the AMC1311QDWVQ1, consider the clock frequency, jitter, and phase noise. A clock frequency of 10-40 MHz is recommended, and the clock source should have low jitter (<100 ps) and phase noise (<-100 dBc/Hz) to ensure accurate conversion.
To handle overvoltage and undervoltage conditions, use external voltage monitoring circuits and consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device. Additionally, ensure that the power supply is stable and regulated to prevent voltage fluctuations.
To ensure proper thermal management, consider the device's junction-to-ambient thermal resistance (RθJA) and ensure good airflow around the device. Use a heat sink or thermal pad if necessary, and avoid blocking airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1311QDWVQ1 Overview

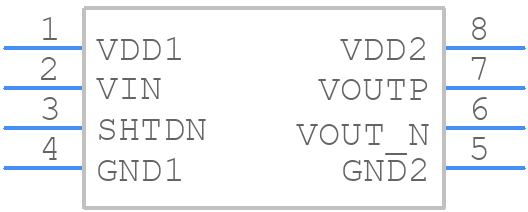

Use the download button to access the AMC1311QDWVQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
