Texas Instruments provides a recommended PCB layout in the AMC1351QDWVRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To minimize high-frequency noise, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and adding shielding or guard rings around sensitive signals. Additionally, consider using a common-mode choke or a ferrite bead to filter out high-frequency noise.
The AMC1351QDWVRQ1 is rated for operation from -40°C to 125°C (junction temperature). However, the device's performance and accuracy may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
Yes, the AMC1351QDWVRQ1 is designed for high-reliability and safety-critical applications. It meets various industry standards, such as AEC-Q100 for automotive and IEC 61508 for functional safety. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of your application.
The AMC1351QDWVRQ1 requires calibration to achieve optimal accuracy. Texas Instruments provides a calibration procedure in the device's datasheet, which involves adjusting the internal gain and offset registers. Additionally, consider using an external calibration circuit or a calibration module to simplify the process.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
AMC1351QDWVRQ1 Overview

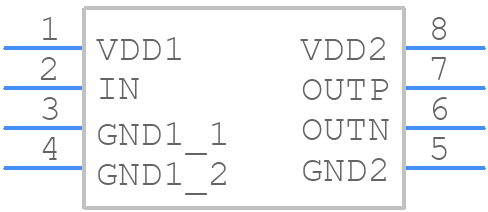

Use the download button to access the AMC1351QDWVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Isolation Amplifiers
