Texas Instruments provides a recommended PCB layout in the AMC1411DWLR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To handle high-frequency noise and EMI emissions, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and adding bypass capacitors. Additionally, consider using EMI filters or common-mode chokes to reduce emissions.
The maximum cable length for the AMC1411DWLR's differential output depends on the specific application and signal frequency. As a general rule, keep cable lengths as short as possible (<10 inches) to minimize signal degradation and noise pickup. Use twisted-pair cables with a characteristic impedance of 100 ohms to maintain signal integrity.
Calibration of the AMC1411DWLR involves adjusting the internal offset and gain to ensure accurate measurements. Texas Instruments provides a calibration procedure in the AMC1411DWLR datasheet, which involves applying a known input voltage and adjusting the internal registers to achieve the desired output.
The AMC1411DWLR has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. High temperatures can affect the device's accuracy, noise performance, and overall reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1411DWLR Overview

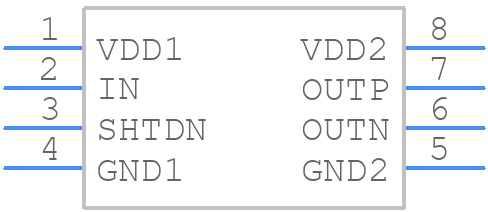

Use the download button to access the AMC1411DWLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC14,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
