A good PCB layout for the AMC1411QDWLRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision voltage reference to improve accuracy.
The AMC1411QDWLRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Also, consider using thermal simulation tools to model the thermal performance of your design.
To minimize EMI and ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead to filter the power supply. Additionally, consider using a PCB layout that minimizes loop areas and uses a solid ground plane to reduce radiation.
For high-reliability or safety-critical applications, consider using redundant or duplicated circuits, implementing error detection and correction mechanisms, and following relevant industry standards (e.g., IEC 61508 or DO-254). Additionally, ensure that the device is properly derated for the specific application, and consider using a device with a higher temperature rating or a redundant power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1411QDWLRQ1 Overview

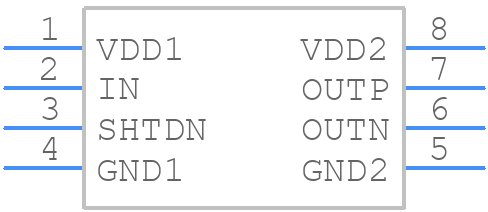

Use the download button to access the AMC1411QDWLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC14,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
