AMC3301QDWERQ1 - Texas Instruments

Description: SP Amp ISOL Amp Single 5.5V T/R

Download AMC3301QDWERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

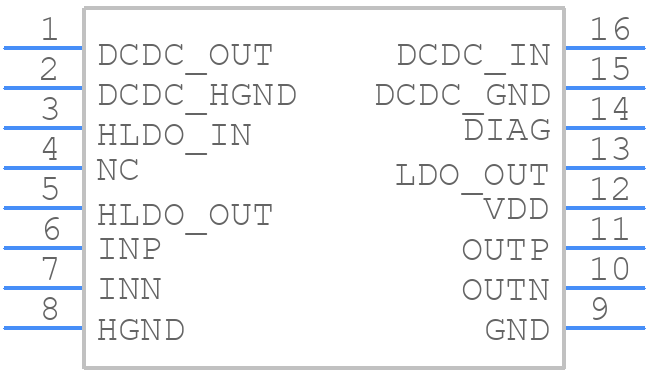

Symbol
AMC3301QDWERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC3301QDWERQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWE0016A
click to zoom
3D Models
AMC3301QDWERQ1 - Texas Instruments - 3D model - Small Outline Packages - DWE0016A
click to zoom

AMC3301QDWERQ1 Details

  • Manufacturer Part Number:

    AMC3301QDWERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-08-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Bandwidth (3dB)-Nom:

    0.334 MHz

  • Common Mode Voltage-Max:

    1 V

  • Input Offset Voltage-Max:

    150 µV

  • Isolation Voltage-Min:

    1200 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.04%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    0.334

  • Width:

    7.5 mm

AMC3301QDWERQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMC3301QDWERQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also recommended to perform calibration at multiple temperatures to account for temperature drift.
  • The recommended input voltage range for the AMC3301QDWERQ1 is 0 to 5.5V. Operating outside this range may affect the device's accuracy and linearity. It's essential to ensure the input voltage is within the recommended range to maintain optimal performance.
  • The AMC3301QDWERQ1 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. The OVP circuitry limits the input voltage to prevent damage, while the UVLO feature disables the device when the input voltage falls below a certain threshold.
  • The AMC3301QDWERQ1 has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Proper thermal management is crucial to ensure the device's reliability and prevent overheating, which can lead to reduced lifespan or even failure.
