Texas Instruments provides a recommended PCB layout in the AMC3311DWER evaluation module user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance.
To optimize the AMC3311DWER for low noise performance, use a low-noise power supply, minimize the distance between the AMC3311DWER and the analog-to-digital converter (ADC), and use a shielded cable to connect the AMC3311DWER to the ADC. Additionally, ensure that the PCB layout is designed to minimize noise coupling and radiation.
The AMC3311DWER is specified to operate from -40°C to 125°C, but it can be operated up to 150°C with reduced performance and reliability. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
The AMC3311DWER does not require calibration, as it is a self-calibrating device. However, the device may require adjustment of the offset and gain settings to match the specific application requirements. Refer to the AMC3311DWER datasheet and application notes for more information on offset and gain adjustment.
The recommended power-up sequence for the AMC3311DWER is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC3311DWER Overview

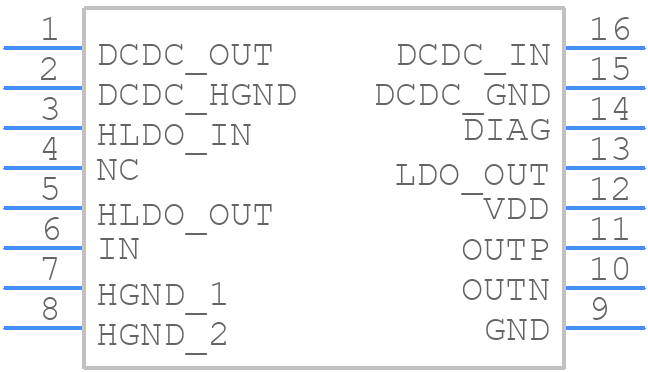

Use the download button to access the AMC3311DWER schematic symbol, PCB footprint, and 3D model.
