AMC6821SQDBQRQ1 - Texas Instruments

Description: Automotive remote and local temp sensor with automatic fan speed control and fault detection

Download AMC6821SQDBQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

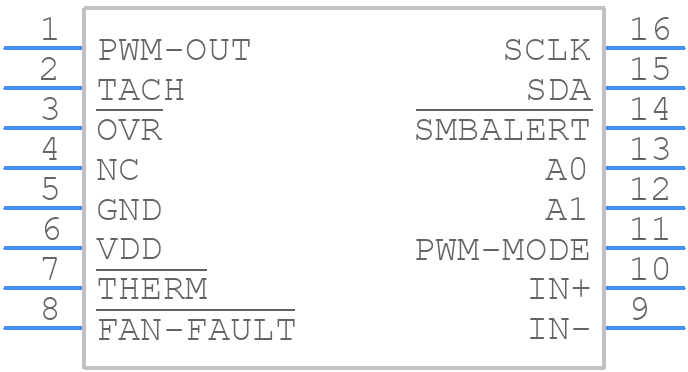

AMC6821SQDBQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC6821SQDBQRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ (R-PDSO-G16)
click to zoom
3D Models
AMC6821SQDBQRQ1 - Texas Instruments - 3D model - Small Outline Packages - DBQ (R-PDSO-G16)
click to zoom

AMC6821SQDBQRQ1 Details

  • Manufacturer Part Number:

    AMC6821SQDBQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AMC6821SQDBQRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • The AMC6821SQDBQRQ1 is a highly configurable device. Consult the datasheet and application notes for specific configuration guidelines. Additionally, Texas Instruments provides a web-based configuration tool to simplify the process.
  • Follow proper PCB layout and routing guidelines, use a common mode choke or ferrite bead for EMI filtering, and ensure proper shielding and grounding to minimize electromagnetic interference.
  • Consult the datasheet and application notes for troubleshooting guidelines. Use a logic analyzer or oscilloscope to debug the issue. Texas Instruments also provides a support forum and technical support team for assistance.
  • The AMC6821SQDBQRQ1 has a high reliability rating, with a typical MTBF of 10 million hours and a FIT rate of 5.7. Consult the datasheet and reliability report for more information.
