AMC7820Y/250 - Texas Instruments

Description: Texas Instruments AMC7820Y/250 Data Acquisition Circuit, 12 bit, 3μs, 48-Pin TQFP

Download AMC7820Y/250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

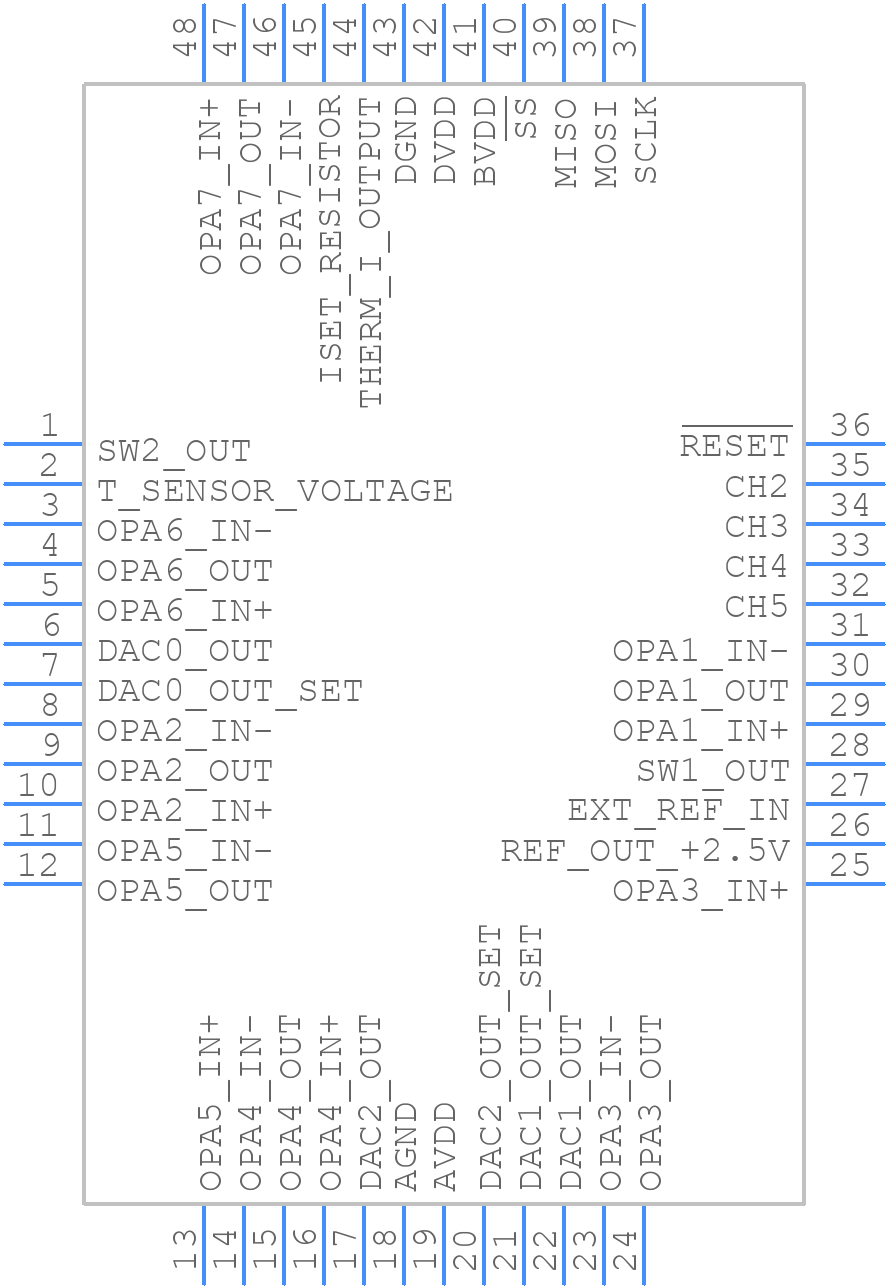

AMC7820Y/250 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC7820Y/250 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48)
click to zoom
3D Models
AMC7820Y/250 - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48)
click to zoom

AMC7820Y/250 Details

  • Manufacturer Part Number:

    AMC7820Y/250

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    5 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AMC7820Y/250 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC7820Y/250 evaluation module user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and interference.
  • The AMC7820Y/250 has a programmable input voltage range, which can be configured using the device's internal registers. The specific configuration depends on the desired input voltage range and can be found in the device's programming guide or by consulting with Texas Instruments' support team.
  • The AMC7820Y/250 has an operating temperature range of -40°C to 125°C, but the device's performance and accuracy may degrade at extreme temperatures. It's essential to consult the datasheet and application notes for specific temperature-related considerations and recommendations.
  • To ensure EMC with the AMC7820Y/250, follow proper PCB design and layout guidelines, use shielding and filtering techniques, and consult with Texas Instruments' application notes and EMC guidelines for the device.
  • The recommended power-up sequence for the AMC7820Y/250 involves powering up the device's analog and digital supplies in a specific order to prevent damage or malfunction. The specific sequence can be found in the device's datasheet or application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC7820Y/250 Overview

Use the download button to access the AMC7820Y/250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC78, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
