AMC7823IRTARG4 - Texas Instruments

Description: IC MONITOR/CONTROL ANALOG 40WQFN

Download AMC7823IRTARG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

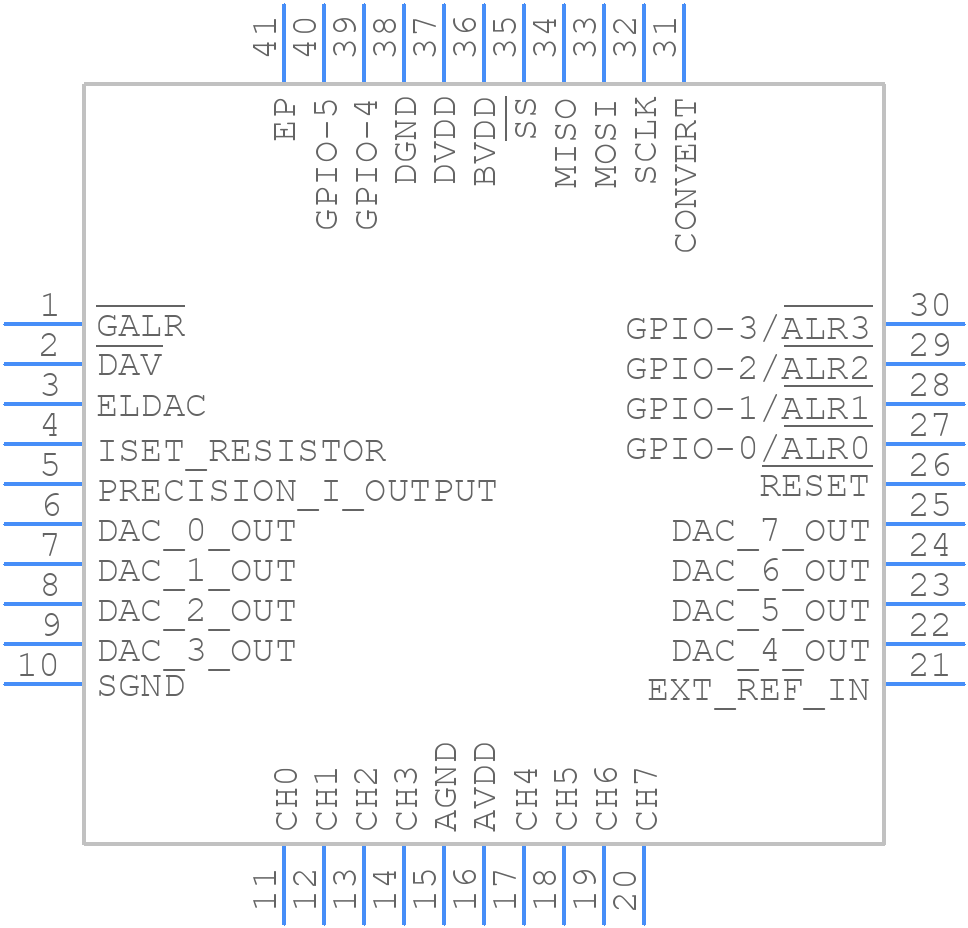

AMC7823IRTARG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC7823IRTARG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTA0040B
click to zoom
3D Models
AMC7823IRTARG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RTA0040B
click to zoom

AMC7823IRTARG4 Details

  • Manufacturer Part Number:

    AMC7823IRTARG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    5 V

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    BUFFERED VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AMC7823IRTARG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC7823IRTARG4 evaluation module user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The AMC7823IRTARG4 has a programmable gain amplifier (PGA) that can be configured using the SPI interface. The gain settings can be programmed using the PGA_GAIN register, which allows for gain settings from 1 to 128. Refer to the datasheet for the specific gain settings and programming details.
  • The AMC7823IRTARG4 has a maximum input voltage range of ±10.5V, which is the absolute maximum rating. However, the recommended input voltage range is ±5V to ensure optimal performance and linearity.
  • The AMC7823IRTARG4 has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. Texas Instruments recommends using a thermal interface material (TIM) and a heat sink to further improve thermal management. Refer to the datasheet for thermal management guidelines.
  • The AMC7823IRTARG4 has a power-on reset (POR) timing of 10ms, which is the time it takes for the device to reset and become operational after power-up. This timing is specified in the datasheet and is important to consider when designing the power-up sequence for the system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC7823IRTARG4 Overview

Use the download button to access the AMC7823IRTARG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC78, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
