A good PCB layout for the AMIS30532C5321RG involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper powering of the AMIS30532C5321RG, use a high-quality power supply with low ripple and noise, and decouple the power pins with 10uF and 100nF capacitors. Also, ensure that the power supply voltage is within the recommended range of 3.3V to 5.5V.
The AMIS30532C5321RG can sink or source up to 10mA of current per pin, but it's recommended to limit the current to 5mA per pin to ensure reliable operation.
To configure the AMIS30532C5321RG for low-power operation, set the PDN pin to logic low, reduce the clock frequency, and use the power-down mode. Additionally, consider using a lower supply voltage and reducing the output current.
The recommended clock frequency for the AMIS30532C5321RG is between 1MHz and 20MHz, but it can operate up to 40MHz. However, higher clock frequencies may require additional decoupling capacitors and a more robust power supply.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMIS30532C5321RG Overview

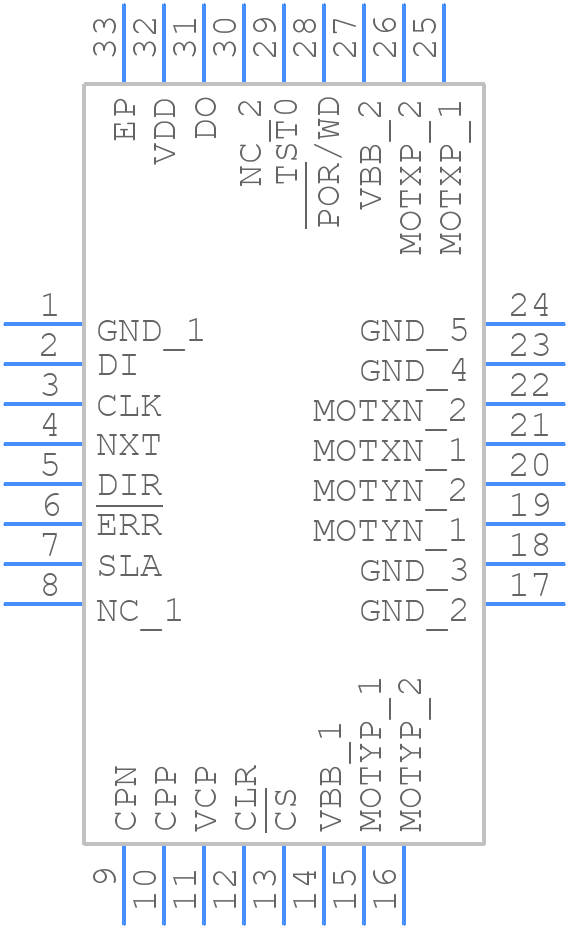

Use the download button to access the AMIS30532C5321RG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMIS3,
or try a keyword search, such as Motion Control Electronics
