Description:Fully compatible with the ISO 11898-2 standard; Certified Authentication on CAN Transceiver Conformance (d1.1); High speed (up to 1Mbit/s); Ideally suited for 12V and 24V industrial and automotive applications; Low EME common-mode choke is no longer required; Differential receiver with wide common-mode range (+/- 35V) for high EMS; No disturbance of the bus lines with an un-powered node; Transmit data (TxD) dominant time-out function; Thermal protection; Bus pins protected against transients in an automotiv
A good PCB layout for the AMIS30660CANH2RG involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the CAN transceiver. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure EMC with the AMIS30660CANH2RG, use a shielded cable for the CAN bus, keep the device away from high-frequency sources, and use a common-mode choke to reduce electromagnetic radiation. Also, ensure that the PCB layout is designed to minimize radiation and susceptibility.
The maximum cable length supported by the AMIS30660CANH2RG is 40 meters, assuming a cable with a characteristic impedance of 120 ohms and a propagation delay of 5 ns/m. However, the actual cable length may vary depending on the specific application and environment.
To troubleshoot CAN bus communication issues with the AMIS30660CANH2RG, use a CAN bus analyzer to monitor the bus traffic, check the termination resistors, and verify that the device is properly configured. Also, ensure that the CAN bus is properly terminated and that there are no faults in the bus wiring.
The operating temperature range of the AMIS30660CANH2RG is -40°C to 125°C. However, the device can be operated at temperatures up to 150°C for short periods of time, but this may affect its reliability and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMIS30660CANH2RG Overview

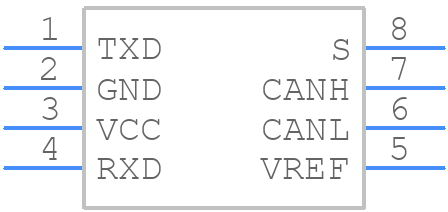

Use the download button to access the AMIS30660CANH2RG schematic symbol, PCB footprint, and 3D model.
