The maximum cable length supported by the SN65HVD1040D is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 1 Mbps.
To ensure signal integrity and minimize EMI, it is recommended to use a shielded cable, keep the transmitter and receiver pairs close together, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
For optimal performance, it is recommended to follow a star topology for the device, with the transmitter and receiver pairs routed close together and away from other noisy signals. Additionally, use a solid ground plane and avoid routing signals near the device's power pins.
To troubleshoot issues with the SN65HVD1040D, start by checking the device's power supply and signal integrity. Use an oscilloscope to verify the signal waveform and check for noise or distortion. Also, verify that the device is properly configured and that the transmitter and receiver are properly paired.
The SN65HVD1040D is rated for operation in industrial temperature ranges (-40°C to 85°C) and can withstand moderate levels of vibration. However, for more extreme environments, additional precautions such as conformal coating or potting may be necessary to ensure reliable operation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN65HVD1040D Overview

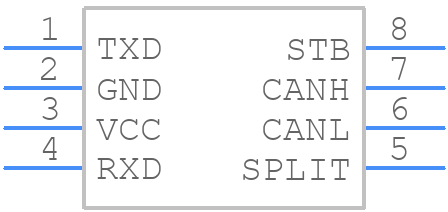

Use the download button to access the SN65HVD1040D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H,
or try a keyword search, such as Network Interfaces
