AMIS30663CANG2G - onsemi

Description: ON Semiconductor AMIS30663CANG2G, CAN Transceiver 1Mbit/s 1-channel ISO 11898-2, 8-Pin SOIC

Download AMIS30663CANG2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

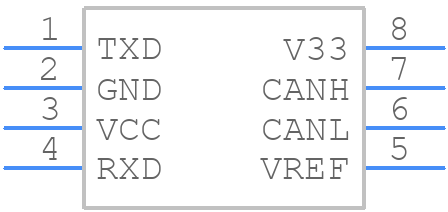

Symbol
AMIS30663CANG2G - onsemi - PCB symbol
click to zoom
PCB Footprints
AMIS30663CANG2G - onsemi PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
AMIS30663CANG2G - onsemi - 3D model - Other - SOIC127P600X175-8N
click to zoom

AMIS30663CANG2G Details

  • Manufacturer Part Number:

    AMIS30663CANG2G

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, GREEN, PLASTIC, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AZ

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9276 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7272 mm

  • Supply Current-Max:

    0.065 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.937 mm

AMIS30663CANG2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMIS30663CANG2G involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load. A 4-layer PCB with a dedicated analog layer is recommended.
  • To ensure stability, make sure to follow the recommended operating conditions, decouple the device with a 10uF capacitor, and use a low-ESR capacitor for the output filter. Additionally, ensure that the device is operated within the recommended temperature range and that the input voltage is within the specified range.
  • The maximum allowed voltage on the EN pin of the AMIS30663CANG2G is 6V. Exceeding this voltage may damage the device.
  • The AMIS30663CANG2G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's performance and consider using a heat sink or thermal management system in high-temperature applications.
  • To troubleshoot issues with the AMIS30663CANG2G, start by verifying that the device is properly powered and that the input voltage is within the specified range. Check the output voltage and current, and ensure that the device is not overheating. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for more troubleshooting guidance.
