A good PCB layout for the AMIS41682CANM1RG involves keeping the CAN bus lines as short as possible, using a ground plane, and placing the device close to the CAN bus connector. Additionally, it's recommended to use a common mode choke and a TVS diode for ESD protection.
To ensure EMC with the AMIS41682CANM1RG, follow proper PCB design guidelines, use a metal shield or screen to enclose the device, and ensure that the device is properly grounded. Additionally, use a common mode choke and a TVS diode for ESD protection.
The maximum cable length supported by the AMIS41682CANM1RG is dependent on the specific application and the type of cable used. However, as a general guideline, the maximum cable length should not exceed 40 meters for a 500 kbps CAN bus and 10 meters for a 1 Mbps CAN bus.
To troubleshoot CAN bus communication issues with the AMIS41682CANM1RG, use a CAN bus analyzer to monitor the bus traffic, check the termination resistors, and verify that the device is properly configured and powered. Additionally, check for any electromagnetic interference (EMI) or radio-frequency interference (RFI) issues.
The operating temperature range of the AMIS41682CANM1RG is -40°C to 125°C. However, the device can be operated at a reduced temperature range of -20°C to 85°C for automotive applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMIS41682CANM1RG Overview

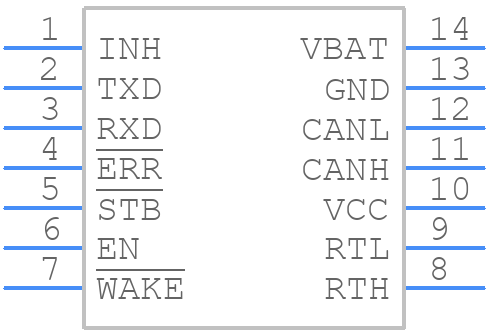

Use the download button to access the AMIS41682CANM1RG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMIS4,
or try a keyword search, such as Network Interfaces
