AMIS42665TJAA1RG - onsemi

Description: Compatible with the ISO 11898 standard (ISO 11898-2, ISO 11898-5 and SAE J2284); High speed (up to 1Mbaud); Ideally suited for 12V and 24V industrial and automotive applications; Extremely low current standby mode with wake-up via the bus; Low EME common-mode choke is no longer required; Differential receiver with wide common-mode range (+/- 35V) for high EMS; Voltage source via VSPLIT pin for stabilizing the recessive bus level (further EMC improvement); No disturbance of the bus lines with an un-powered n

Download AMIS42665TJAA1RG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

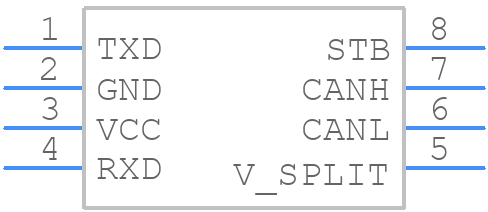

AMIS42665TJAA1RG - onsemi - PCB symbol
click to zoom
PCB Footprints
AMIS42665TJAA1RG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
AMIS42665TJAA1RG - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

AMIS42665TJAA1RG Details

  • Manufacturer Part Number:

    AMIS42665TJAA1RG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AZ

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.065 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AMIS42665TJAA1RG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
  • The AMIS42665TJAA1RG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • Yes, the device is designed to withstand vibrations. However, ensure that the PCB is properly secured and the device is properly soldered to prevent mechanical stress. Follow the recommended PCB layout and assembly guidelines.
  • Check the input voltage, output voltage, and current consumption. Verify that the device is properly configured and that the output capacitors are of the recommended type and value. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMIS42665TJAA1RG Overview

Use the download button to access the AMIS42665TJAA1RG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMIS4, or try a keyword search, such as Network Interfaces
