AMP01AX footprint, schematic symbol and 3D model by Analog Devices

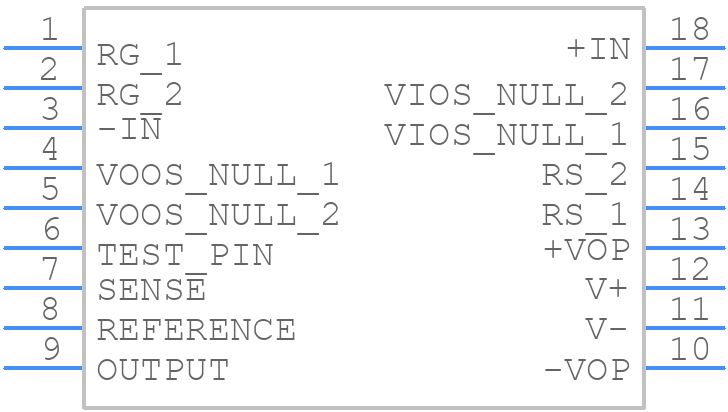

Symbol

click to zoom

PCB Footprints

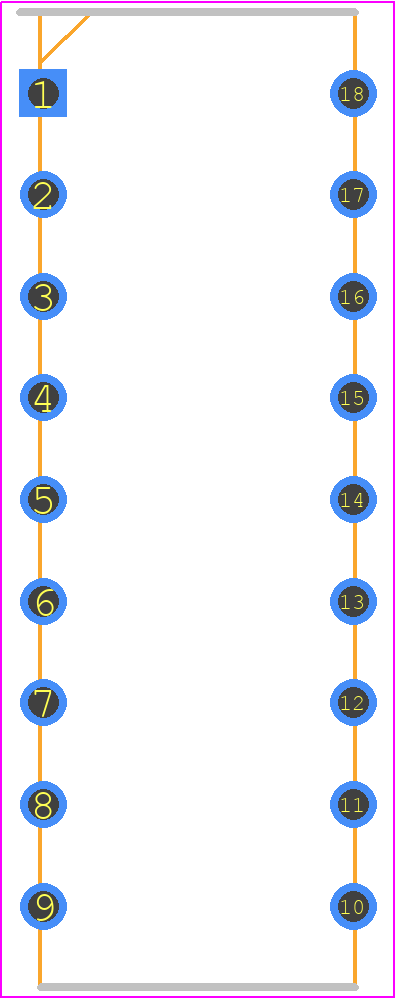

AMP01AX - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-18

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AMP01AX
Part Number AMP01AX
Manufacturer Analog Devices
Pin Count 18
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - Q-18
Released Date Feb 9, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AMP01AX Details

Manufacturer Part Number:
AMP01AX
Source Url Status Check Date:
2013-05-01 14:56:52.566
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
DIP-18
Pin Count:
18
Manufacturer Package Code:
Q-18
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Amplifier Type:
INSTRUMENTATION AMPLIFIER
Average Bias Current-Max (IIB):
0.01 µA
Bandwidth (3dB)-Nom:
0.57 MHz
Common-mode Reject Ratio-Min:
80 dB
Input Offset Current-Max (IIO):
0.001 µA
Input Offset Voltage-Max:
80 µV
JESD-30 Code:
R-GDIP-T18
JESD-609 Code:
e0
Length:
10.62 mm
Neg Supply Voltage Limit-Max:
-18 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Non-linearity-Max:
0.005%
Number of Functions:
1
Number of Terminals:
18
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP18,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Slew Rate-Nom:
4.5 V/us
Supply Current-Max:
4.8 mA
Supply Voltage Limit-Max:
18 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Voltage Gain-Max:
10000
Voltage Gain-Min:
0.1
Voltage Gain-Nom:
10000
Width:
7.62 mm

AMP01AX Frequently Asked Questions (FAQs)

A good PCB layout for the AMP01AX involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output impedances are matched, and the gain is set correctly. If oscillations occur, try adding a small capacitor (e.g., 10pF) between the output and the inverting input.
The maximum power dissipation of the AMP01AX is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C. However, it's recommended to derate the power dissipation based on the operating temperature and thermal resistance.
Yes, the AMP01AX can be used as a unity-gain buffer amplifier. To do so, connect the output to the inverting input, and ensure the input impedance is matched to the source impedance. This configuration provides a high-input impedance and a low-output impedance, making it suitable for buffering applications.
To protect the AMP01AX from overvoltage and ESD damage, use voltage clamps or transient voltage suppressors (TVS) on the input and output pins. Additionally, ensure that the device is handled and stored in an ESD-safe environment, and use ESD-protective packaging during transportation.

Trust Checks

Expert Contribution

System Verified

Community Approved

AMP01AX Overview

Use the download button to access the AMP01AX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AMP01, or try a keyword search, such as Instrumentation Amplifiers
