AMP01FX - Analog Devices

Description: Instrumentation Amplifier 1 Circuit 18-CDIP

Download AMP01FX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

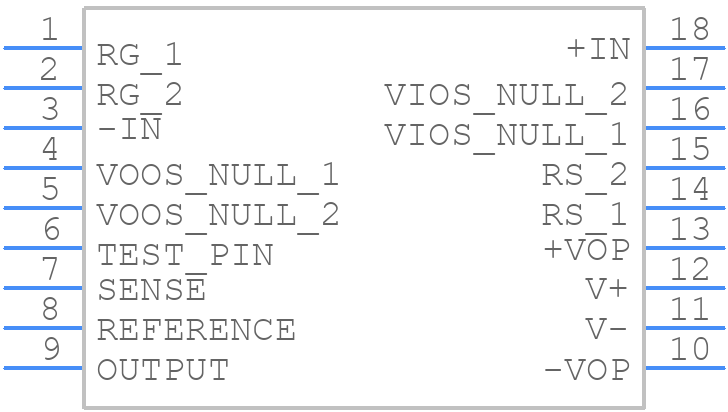

AMP01FX - Analog Devices - PCB symbol
click to zoom
PCB Footprints

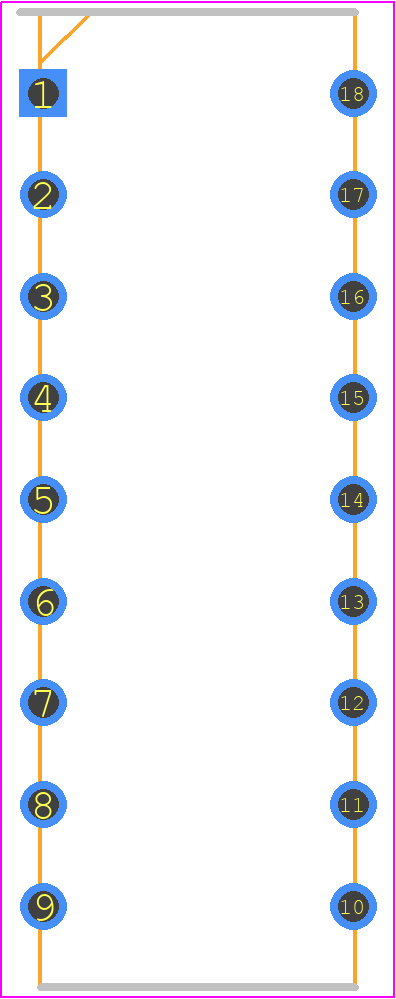

AMP01FX - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-18
click to zoom

AMP01FX Details

  • Manufacturer Part Number:

    AMP01FX

  • Source Url Status Check Date:

    2013-05-01 14:56:52.584

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    Q-18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.015 µA

  • Bandwidth (3dB)-Nom:

    0.57 MHz

  • Common-mode Reject Ratio-Min:

    75 dB

  • Input Offset Current-Max (IIO):

    0.002 µA

  • Input Offset Voltage-Max:

    150 µV

  • JESD-30 Code:

    R-GDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    10.62 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.005%

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Nom:

    4.5 V/us

  • Supply Current-Max:

    4.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    10000

  • Voltage Gain-Min:

    0.1

  • Voltage Gain-Nom:

    10000

  • Width:

    7.62 mm

AMP01FX Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMP01FX involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the input signal source. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, and to keep the input and output impedance matched. Additionally, using a low-ESR capacitor for power supply decoupling and minimizing parasitic capacitance can help prevent oscillations.
  • The maximum power dissipation of the AMP01FX is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • Yes, the AMP01FX can be used in a single-supply configuration. To do so, connect the negative input to a voltage divider that sets the input common-mode voltage to half the supply voltage. Additionally, ensure that the output voltage swing is within the specified range.
  • To optimize the noise performance of the AMP01FX, use a low-noise power supply, minimize the input capacitance, and use a low-noise input signal. Additionally, consider using a noise-reducing filter at the input or output stage.
