Part Image

AMT-32+ - Mini-Circuits

Description: low insertion S-1 and S-2, 0.5 dB typ; J-1 and J-2, 0.5 dB typ. very good input VSWR, 1.3 typ. and good output VSWR, 1.35 typ. excellent amplitude unbalance, 0.2 dB typ. excellent phase unbalance, 2 deg. typ. high isolation S-J ports and 1-2 ports, 35 dB typ. protected under US Patent 6,133,525

Download AMT-32+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

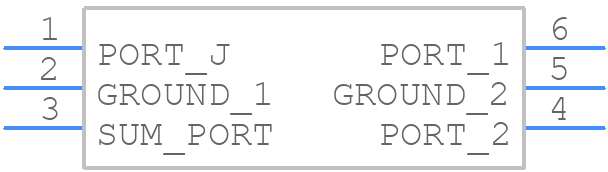

AMT-32+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
AMT-32+ - Mini-Circuits PCB footprint - Other - Other - CD636_2025
click to zoom
3D Models
AMT-32+ - Mini-Circuits - 3D model - Other - CD636_2025
click to zoom

AMT-32+ Details

  • Manufacturer Part Number:

    AMT-32+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • RF/Microwave Device Type:

    180 DEGREE HYBRID COUPLER

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMT-32+ Overview

Use the download button to access the AMT-32+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMT-3, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
