Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Calibration involves adjusting the zero-current output voltage and sensitivity to match the specific application requirements. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the output voltage accordingly.
The AMT49106KJPTR has an operating temperature range of -40°C to 150°C, but the maximum allowable temperature range for storage is -40°C to 150°C, and for soldering, it's 260°C for 10 seconds.
Yes, the AMT49106KJPTR is designed to withstand high-vibration environments. Allegro specifies a vibration tolerance of 10 G peak acceleration, 10 Hz to 2 kHz, and 6 G peak acceleration, 2 kHz to 10 kHz.
To protect the AMT49106KJPTR from EMI, use proper shielding, grounding, and filtering techniques. Allegro recommends using a shielded cable, a common-mode choke, and a low-pass filter to minimize EMI effects.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMT49106KJPTR Overview

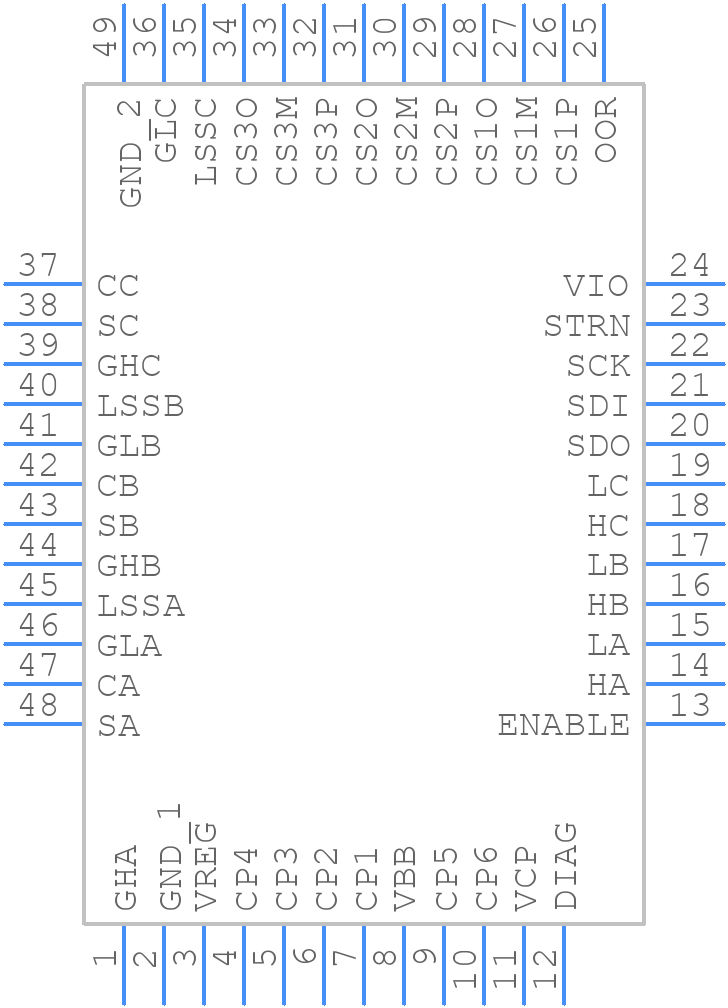

Use the download button to access the AMT49106KJPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMT49,
or try a keyword search, such as Motion Control Electronics
