SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Seated Height-Max:
1.65 mm
Supply Current-Max (Isup):
5 mA
Supply Voltage-Max (Vsup):
16 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
1 mm
Terminal Position:
DUAL
Width:
3.9 mm
AMT49400GLKATR Frequently Asked Questions (FAQs)
A good PCB layout for the AMT49400GLKATR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the output pins. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure accurate output from the AMT49400GLKATR in noisy environments, it's recommended to use a low-pass filter on the output pins, add a shield around the device, and use a ground plane to reduce electromagnetic interference (EMI). Additionally, using a ferrite bead or a common-mode choke on the power supply lines can help reduce noise.
The AMT49400GLKATR has an operating temperature range of -40°C to 150°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
Yes, the AMT49400GLKATR is designed to operate in high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, using a vibration-dampening material, such as a silicone adhesive, can help reduce the effects of vibration on the device.
The AMT49400GLKATR does not require calibration. However, it's recommended to follow the application note provided by Allegro MicroSystems LLC for optimal performance. The application note provides guidelines for PCB layout, component selection, and device configuration.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMT49400GLKATR Overview

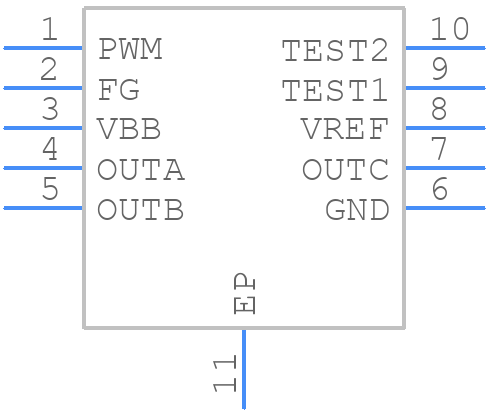

Use the download button to access the AMT49400GLKATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMT49,
or try a keyword search, such as Motion Control Electronics
