A good PCB layout for the AMT49406GESSR involves keeping the device as close to the motor as possible, using a solid ground plane, and minimizing the length of the motor leads. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to choose a sense resistor value that results in a voltage drop of around 50-100 mV at the maximum motor current. The datasheet provides a formula to calculate the sense resistor value based on the motor current and desired accuracy.
The AMT49406GESSR has an operating temperature range of -40°C to 150°C. However, the device can be derated for operation above 125°C. It's essential to ensure that the device is properly cooled and that the maximum junction temperature is not exceeded.
To troubleshoot issues with the AMT49406GESSR, start by checking the power supply voltage, motor connections, and sense resistor values. Verify that the device is properly configured and that the motor is properly connected. Use an oscilloscope to monitor the device's output signals and check for any anomalies. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
Yes, the AMT49406GESSR can be used with a brushless DC motor. However, it's essential to ensure that the motor is properly configured and that the device is properly set up to handle the motor's commutation sequence. Consult the datasheet and application notes for guidelines on using the AMT49406GESSR with brushless DC motors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMT49406GESSR Overview

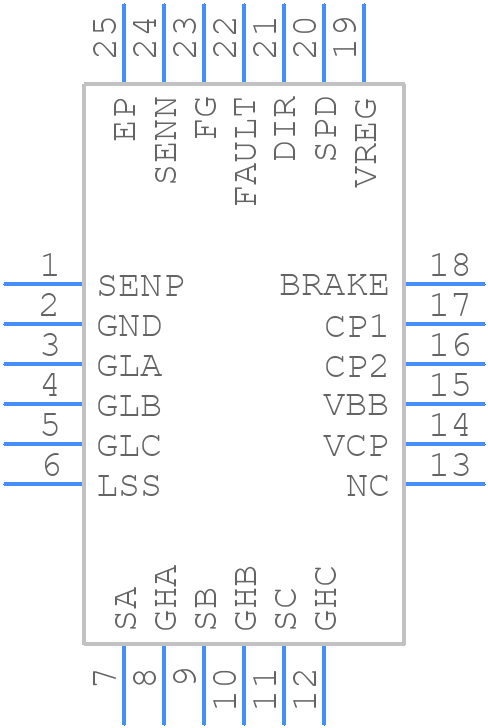

Use the download button to access the AMT49406GESSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMT49,
or try a keyword search, such as Motion Control Electronics
