Part Image

AMT49406GLPTR - Allegro Microsystems

Description: Three-Phase FOC BLDC Motor Controller

Download AMT49406GLPTR Model

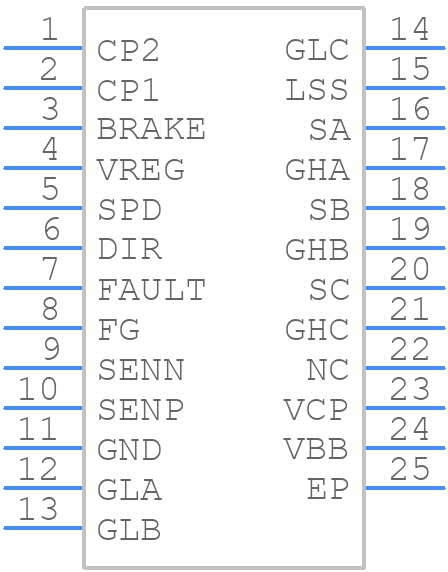

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMT49406GLPTR - Allegro Microsystems PCB footprint - Other - Other - LP Package, 24-Pin TSSOP
click to zoom
3D Models
AMT49406GLPTR - Allegro Microsystems  - 3D model - Other - LP Package, 24-Pin TSSOP
click to zoom

AMT49406GLPTR Details

  • Manufacturer Part Number:

    AMT49406GLPTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8.7

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AMT49406GLPTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sense lines as short as possible and away from noise sources.
  • Use a low-pass filter with a cutoff frequency of around 100 kHz to filter out high-frequency noise. You can also use a capacitor in series with a resistor to filter out high-frequency noise.
  • Power on the VCC pin first, followed by the VDD pin. This ensures that the internal voltage regulators are powered up correctly.
  • Use the built-in self-test feature to calibrate the device. Apply a known magnetic field and adjust the offset and gain registers to achieve optimal accuracy.
  • The maximum operating temperature range is -40°C to 150°C. However, the device is typically specified for operation up to 125°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMT49406GLPTR Overview

Use the download button to access the AMT49406GLPTR schematic symbol, PCB footprint, and 3D model.
