A good PCB layout for the AMT49413GEVATR involves keeping the device as close to the motor as possible, using a solid ground plane, and minimizing the length of the motor leads. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to choose a sense resistor value that results in a voltage drop of around 50-100 mV at the maximum motor current. The datasheet provides a formula to calculate the sense resistor value based on the motor current and desired accuracy.
The AMT49413GEVATR has an operating temperature range of -40°C to 150°C. However, the device can be derated for operation above 125°C. It's essential to ensure that the device is properly cooled and that the maximum junction temperature is not exceeded.
The AMT49413GEVATR has built-in overcurrent protection, but it's still essential to add external protection components such as fuses, TVS diodes, and ESD protection devices to protect the device from overvoltage and overcurrent conditions. Additionally, a good PCB layout and proper thermal management can help prevent overheating and damage to the device.
A decoupling capacitor with a value of 10-100 nF is recommended, placed as close to the device as possible. The capacitor should be connected between the VCC pin and the GND pin. This helps to filter out noise and reduce electromagnetic interference (EMI).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMT49413GEVATR Overview

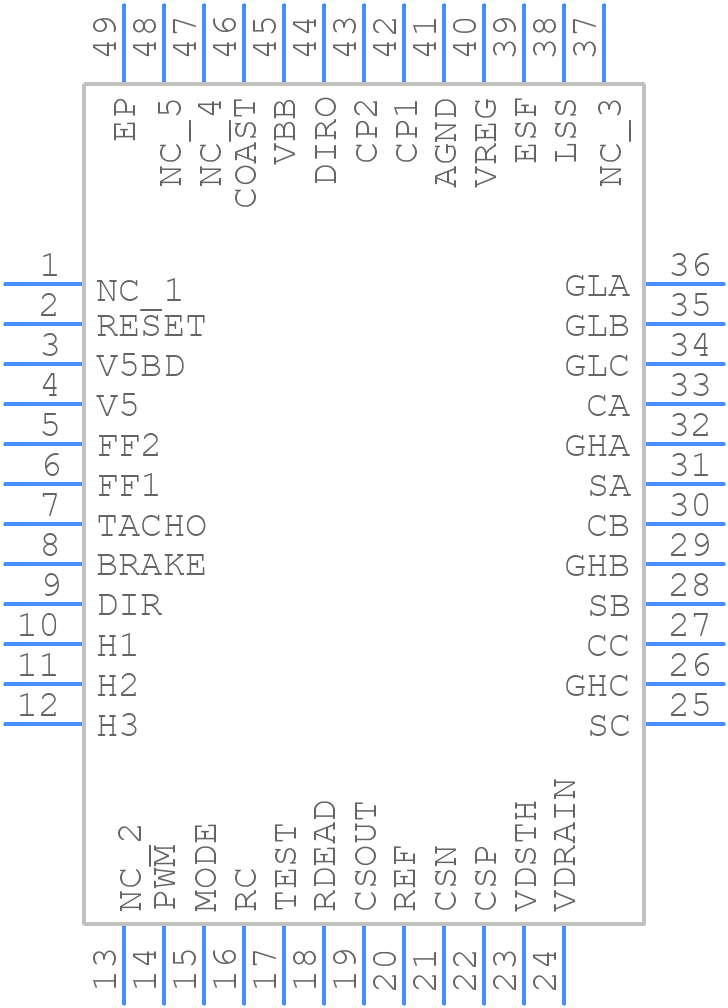

Use the download button to access the AMT49413GEVATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMT49,
or try a keyword search, such as Motion Control Electronics
