AMT49413KEVSR-J - Allegro Microsystems

Description: BLDC MOSFET Controller W/Hall Commutation

Download AMT49413KEVSR-J Model

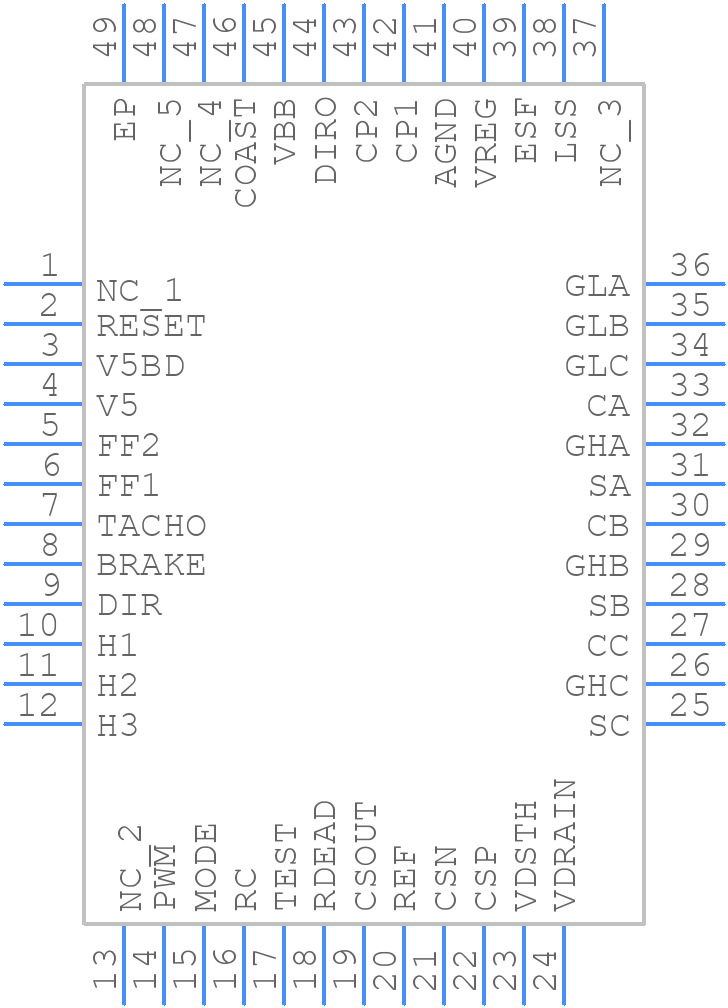

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMT49413KEVSR-J - Allegro Microsystems PCB footprint - Other - Other - Package EV, 48 Terminal QFN
click to zoom
3D Models
AMT49413KEVSR-J - Allegro Microsystems  - 3D model - Other - Package EV, 48 Terminal QFN
click to zoom

AMT49413KEVSR-J Details

  • Manufacturer Part Number:

    AMT49413KEVSR-J

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    9

  • Additional Feature:

    SEATED HGT-NOM

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    7.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

AMT49413KEVSR-J Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296050, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The thermal shutdown feature is designed to protect the device from overheating. When the device exceeds the thermal shutdown threshold, it will shut down until the temperature drops below the hysteresis threshold. To handle this, ensure proper thermal design, use a heat sink if necessary, and implement a thermal monitoring and shutdown strategy in your system design.
  • Allegro recommends using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz to reduce noise and electromagnetic interference (EMI). The specific filter configuration may vary depending on the application and noise environment.
  • Calibration involves adjusting the device's internal registers to compensate for manufacturing variations and temperature effects. Allegro provides a calibration procedure in their application note AN296050, which involves measuring the device's output and adjusting the registers accordingly.
  • The maximum allowable voltage on the VCC pin is 5.5 V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
