AMT49700KETJTR - Allegro Microsystems

Description: Automotive Stepper Motor Driver W/Programmable Motor Control

Download AMT49700KETJTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

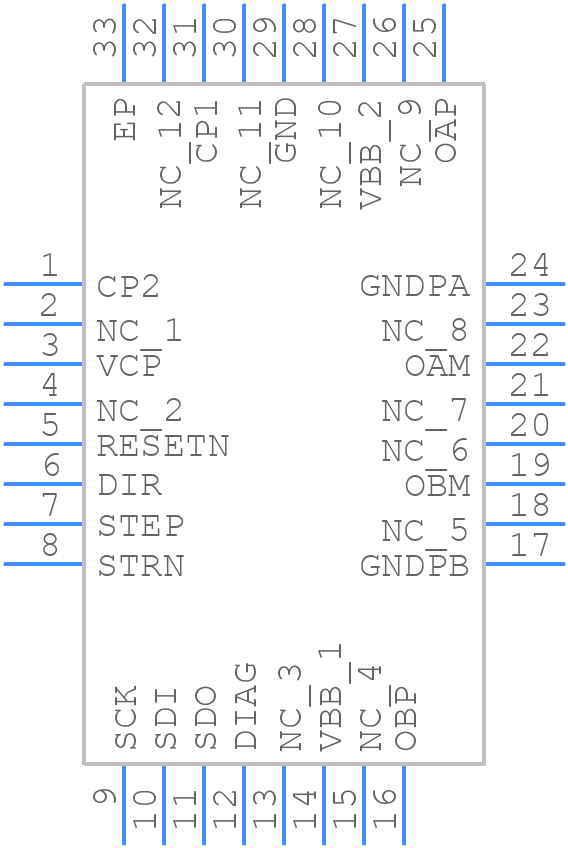

AMT49700KETJTR - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
AMT49700KETJTR - Allegro Microsystems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ET, 32-Contact QFN with Exposed Pad and Wettable Flank
click to zoom
3D Models
AMT49700KETJTR - Allegro Microsystems - 3D model - Quad Flat No-Lead - ET, 32-Contact QFN with Exposed Pad and Wettable Flank
click to zoom

AMT49700KETJTR Details

  • Manufacturer Part Number:

    AMT49700KETJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AMT49700KETJTR Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference design and layout guidelines in their application notes.
  • Calibration involves adjusting the zero-point and sensitivity of the sensor. Allegro provides a calibration procedure in their application notes, which involves applying a known magnetic field and adjusting the sensor's output accordingly.
  • The AMT49700KETJTR is rated for operation from -40°C to 150°C, but the accuracy and sensitivity may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • Yes, the AMT49700KETJTR is designed to operate in high-vibration environments, but the sensor's accuracy and sensitivity may be affected. Allegro recommends using a vibration-dampening mounting system and following their application notes for vibration-resistant design.
  • The AMT49700KETJTR has an analog output that can be interfaced with a microcontroller's analog-to-digital converter (ADC). Allegro provides example code and interface guidelines in their application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMT49700KETJTR Overview

Use the download button to access the AMT49700KETJTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMT49, or try a keyword search, such as Motion Control Electronics
