AN30259A - Panasonic

Description: AN30259A, LED Driver 3-Segments, 3.1 V, 6 V, 12-Pin WL-CSP

Download AN30259A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AN30259A model

Email notifications will be applied after download.

Send part feedback

Symbol

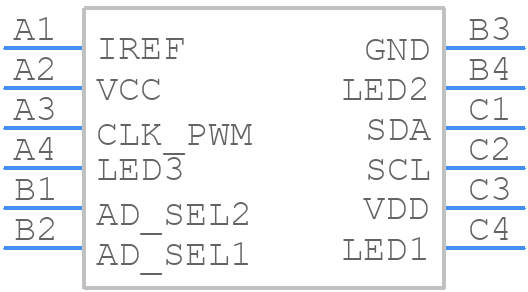

AN30259A - Panasonic - PCB symbol

PCB Footprints

AN30259A - Panasonic PCB footprint - BGA - BGA - XBGA012-W-1316AEL

3D Models

AN30259A - Panasonic - 3D model - BGA - XBGA012-W-1316AEL

Datasheet Download Datasheet
Stock & Prices Price & Stock for AN30259A
Part Number AN30259A
Manufacturer Panasonic
Pin Count 12
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - XBGA012-W-1316AEL
Released Date Nov 25, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AN30259A Details

Manufacturer Part Number:
AN30259A
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Panasonic Electronic Components
YTEOL:
0
Interface IC Type:
LED DISPLAY DRIVER

Trust Checks

Community Provided

System Verified

Community Approved

AN30259A Overview

Use the download button to access the AN30259A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AN302, or try a keyword search, such as Display Drivers
